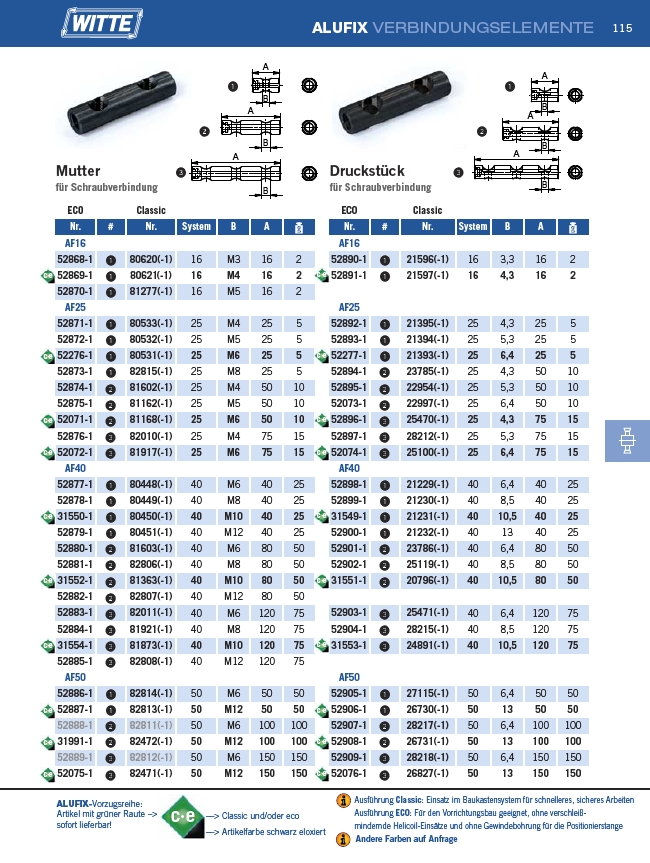

115
��
��
��
��
��
��
ECO Classic
Nr. # Nr. System B A
AF16
52868-1 80620(-1) 16 M3 16 2
52869-1 80621(-1) 16 M4 16 2
52870-1 81277(-1) 16 M5 16 2
AF25
52871-1 80533(-1) 25 M4 25 5
52872-1 80532(-1) 25 M5 25 5
52276-1 80531(-1) 25 M6 25 5
52873-1 82815(-1) 25 M8 25 5
52874-1 81602(-1) 25 M4 50 10
52875-1 81162(-1) 25 M5 50 10
52071-1 81168(-1) 25 M6 50 10
52876-1 82010(-1) 25 M4 75 15
52072-1 81917(-1) 25 M6 75 15
AF40
52877-1 80448(-1) 40 M6 40 25
52878-1 80449(-1) 40 M8 40 25
31550-1 80450(-1) 40 M10 40 25
52879-1 80451(-1) 40 M12 40 25
52880-1 81603(-1) 40 M6 80 50
52881-1 82806(-1) 40 M8 80 50
31552-1 81363(-1) 40 M10 80 50
52882-1 82807(-1) 40 M12 80 50
52883-1 82011(-1) 40 M6 120 75
52884-1 81921(-1) 40 M8 120 75
31554-1 81873(-1) 40 M10 120 75
52885-1 82808(-1) 40 M12 120 75
AF50
52886-1 82814(-1) 50 M6 50 50
52887-1 82813(-1) 50 M12 50 50
52888-1 82811(-1) 50 M6 100 100
31991-1 82472(-1) 50 M12 100 100
52889-1 82812(-1) 50 M6 150 150
52075-1 82471(-1) 50 M12 150 150
ALUFIX VERBINDUNGSELEMENTE
��
��
��
��
��
��
ECO Classic
Nr. # Nr. System B A
AF16
52890-1 21596(-1) 16 3,3 16 2
52891-1 21597(-1) 16 4,3 16 2
AF25
52892-1 21395(-1) 25 4,3 25 5
52893-1 21394(-1) 25 5,3 25 5
52277-1 21393(-1) 25 6,4 25 5
52894-1 23785(-1) 25 4,3 50 10
52895-1 22954(-1) 25 5,3 50 10
52073-1 22997(-1) 25 6,4 50 10
52896-1 25470(-1) 25 4,3 75 15
52897-1 28212(-1) 25 5,3 75 15
52074-1 25100(-1) 25 6,4 75 15
AF40
52898-1 21229(-1) 40 6,4 40 25
52899-1 21230(-1) 40 8,5 40 25
31549-1 21231(-1) 40 10,5 40 25
52900-1 21232(-1) 40 13 40 25
52901-1 23786(-1) 40 6,4 80 50
52902-1 25119(-1) 40 8,5 80 50
31551-1 20796(-1) 40 10,5 80 50
52903-1 25471(-1) 40 6,4 120 75
52904-1 28215(-1) 40 8,5 120 75
31553-1 24891(-1) 40 10,5 120 75
AF50
52905-1 27115(-1) 50 6,4 50 50
52906-1 26730(-1) 50 13 50 50
52907-1 28217(-1) 50 6,4 100 100
52908-1 26731(-1) 50 13 100 100
52909-1 28218(-1) 50 6,4 150 150
52076-1 26827(-1) 50 13 150 150
c·e
c·e
c·e
c·e
c·e
c·e
c·e
c·e
c·e
c·e
c·e
c·e
c·e
c·e
c·e
c·e
c·e
c·e
c·e
c·e
c·e
Mutter
für Schraubverbindung
Druckstück
für Schraubverbindung
ALUFIX-Vorzugsreihe:
Artikel mit grüner Raute –>
sofort lieferbar!
––> Classic und/oder eco
––> Artikelfarbe schwarz eloxiert
Ausführung Classic: Einsatz im Baukastensystem für schnelleres, sicheres Arbeiten
Ausführung ECO: Für den Vorrichtungsbau geeignet, ohne verschleiß-
mindernde Helicoil-Einsätze und ohne Gewindebohrung für die Positionierstange
Andere Farben auf Anfrage
