13

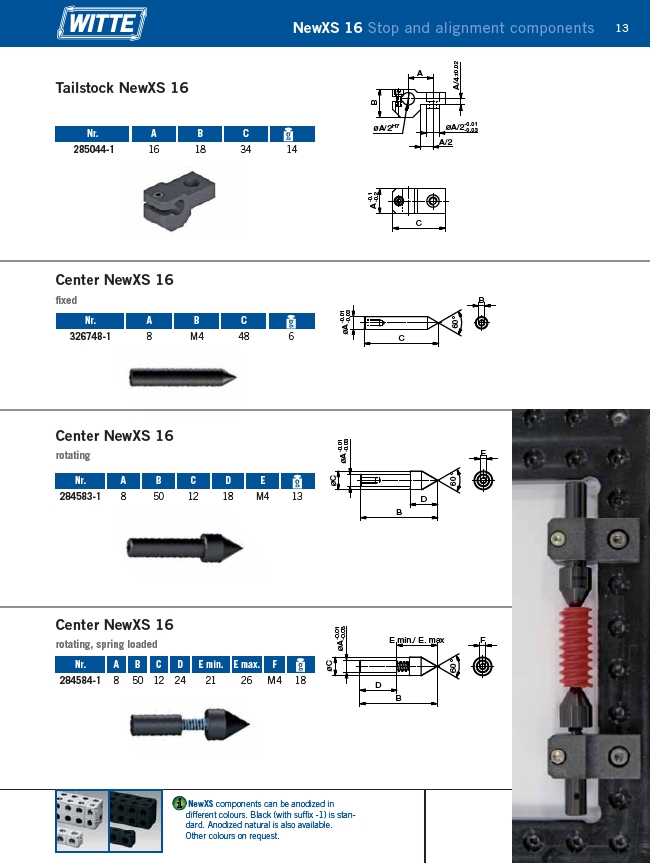

Tailstock NewXS 16
Nr. A B C
NewXS 16 Stop and alignment components
285044-1 16 18 34 14
Center NewXS 16
fixed
Nr. A B C
326748-1 8 M4 48 6
Center NewXS 16
rotating
Nr. A B C D E
284583-1 8 50 12 18 M4 13
Nr. A B C D E min. E max. F
284584-1 8 50 12 24 21 26 M 4 18
i
øA/2H7 øA/2-0.01
C
øA-0.01
-0.03
60°
B
øA-0.01
-0.03
D
B
60°
øC
E
øA-0.01
-0.03
B
60°
øC
E min./ E.max F
D
-0.03
C
B
A/4±0.02
A-0.1
-0.2
A/2
A
NewXS components can be anodized in
different colours. Black (with suffix -1) is standard.
Anodized natural is also available.
Other colours on request.
Center NewXS 16
rotating, spring loaded
