16
Nr. A B C D
20338-1 35 3,9 8 46 3
22259-1 55 5,9 8 66 5
A
ØB
ØC
A
ØB
D
øC
Nr. A B C D E
20339-1 35 3,9 8 M4 46 3
22262-1 55 5,9 8 M4 66 5
øD
B
E
øC-0.05
-0.1
A
Nr. A B C D E
i
327460-1 37,2 M4 8 3,9 4,8 3
i
for connection using crosspiece (p. 38)
for connection using crosspiece (p. 38)
Hold down column with thread
mounted using crosspiece nut

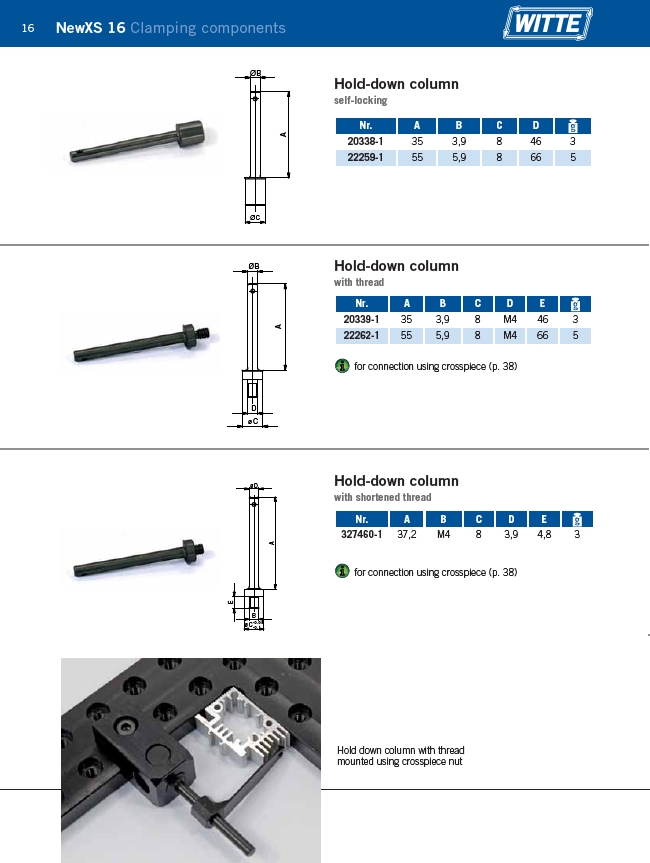

NewXS 16 Clamping components
Hold-down column
self-locking
Hold-down column
with thread
Hold-down column
with shortened thread
