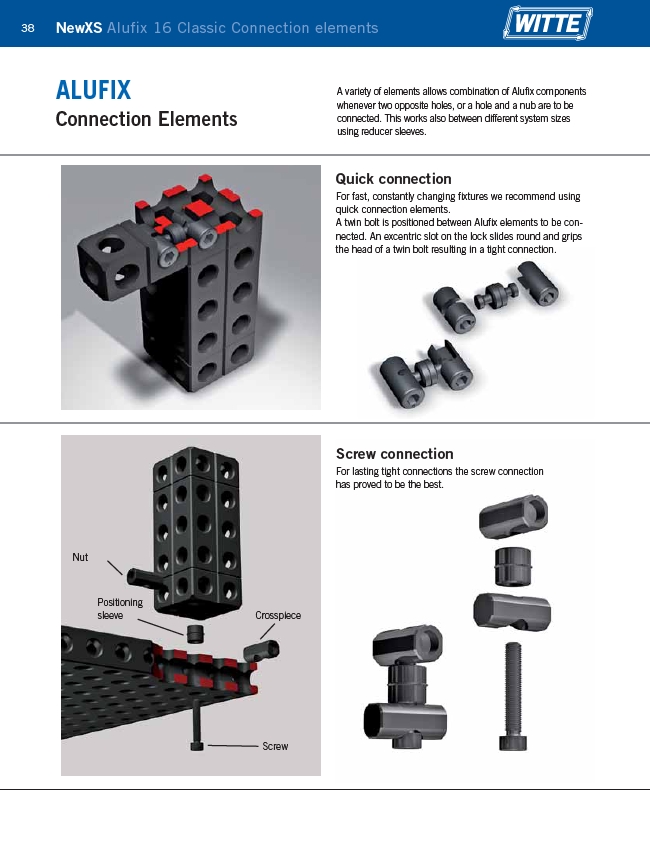

38 NewXS Alufix 16 Classic Connection elements
ALUFIX
Connection Elements
A variety of elements allows combination of Alufix components
whenever two opposite holes, or a hole and a nub are to be
connected. This works also between different system sizes
using reducer sleeves.
Quick connection
For fast, constantly changing fixtures we recommend using
quick connection elements.
A twin bolt is positioned between Alufix elements to be connected.
An excentric slot on the lock slides round and grips
the head of a twin bolt resulting in a tight connection.
Screw connection
For lasting tight connections the screw connection
has proved to be the best.
Nut
Positioning
sleeve Crosspiece
Screw
