25
��
��
��
��
��
��
����
E
D
B
C
A
øF
Nr. A B C D
81587-1 10 M12 x 0,5 M4 8 2
Fixing disc
without stud
Nr. A B C
81589-1 8 M12 x 0,5 M4 2
Nr. A B C D E F
55875-1 8 3 14 M6 M12 x 0,5 16 3
Hex socket head screw
DIN 7984
Nr. A B DIN WAF
17255-S1 8 M4 7984 2,5 1
11546-S1 10 M4 7984 2,5 1,5
16141-S1 12 M4 7984 2,5 1,5
16359-S1 16 M4 7984 2,5 1,5
Nr. WAF
17374 2,5 240
i

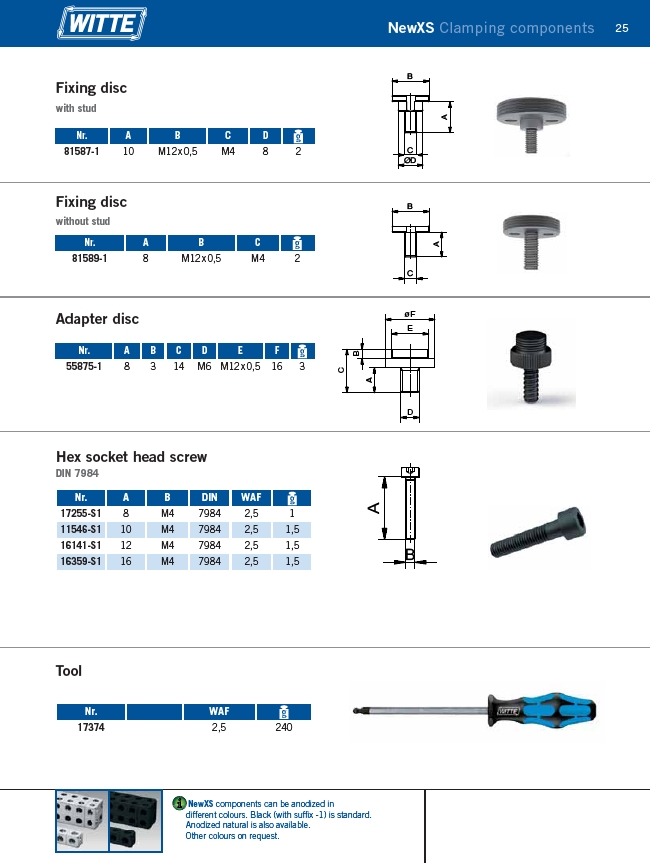

NewXS Clamping components
Fixing disc
with stud
Adapter disc
NewXS components can be anodized in
different colours. Black (with suffix -1) is standard.
Anodized natural is also available.
Other colours on request.
Tool
