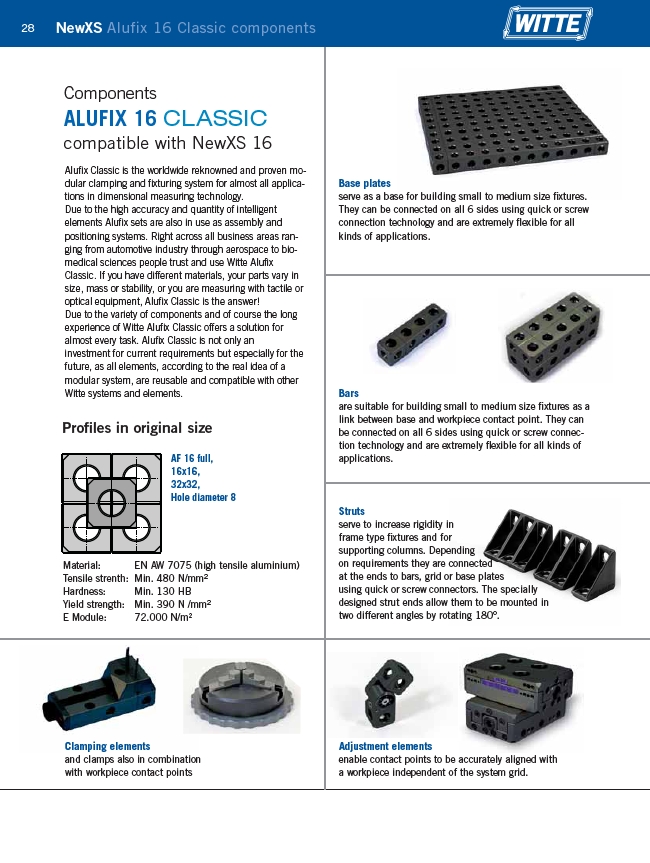

28 NewXS Alufix 16 Classic components
Components
ALUFIX 16 CLASSIC
compatible with NewXS 16
Base plates
serve as a base for building small to medium size fixtures.
They can be connected on all 6 sides using quick or screw
connection technology and are extremely flexible for all
kinds of applications.
Bars
are suitable for building small to medium size fixtures as a
link between base and workpiece contact point. They can
be connected on all 6 sides using quick or screw connection
technology and are extremely flexible for all kinds of
applications.
Struts
serve to increase rigidity in
frame type fixtures and for
supporting columns. Depending
on requirements they are connected
at the ends to bars, grid or base plates
using quick or screw connectors. The specially
designed strut ends allow them to be mounted in
two different angles by rotating 180°.
Adjustment elements
enable contact points to be accurately aligned with
a workpiece independent of the system grid.
Alufix Classic is the worldwide reknowned and proven modular
clamping and fixturing system for almost all applications
in dimensional measuring technology.
Due to the high accuracy and quantity of intelligent
elements Alufix sets are also in use as assembly and
positioning systems. Right across all business areas ranging
from automotive industry through aerospace to biomedical
sciences people trust and use Witte Alufix
Classic. If you have different materials, your parts vary in
size, mass or stability, or you are measuring with tactile or
optical equipment, Alufix Classic is the answer!
Due to the variety of components and of course the long
experience of Witte Alufix Classic offers a solution for
almost every task. Alufix Classic is not only an
investment for current requirements but especially for the
future, as all elements, according to the real idea of a
modular system, are reusable and compatible with other
Witte systems and elements.
Profiles in original size
AF 16 full,
16x16,
32x32,
Hole diameter 8
Material: EN AW 7075 (high tensile aluminium)
Tensile strenth: Min. 480 N/mm²
Hardness: Min. 130 HB
Yield strength: Min. 390 N /mm²
E Module: 72.000 N/m²
Clamping elements
and clamps also in combination
with workpiece contact points
