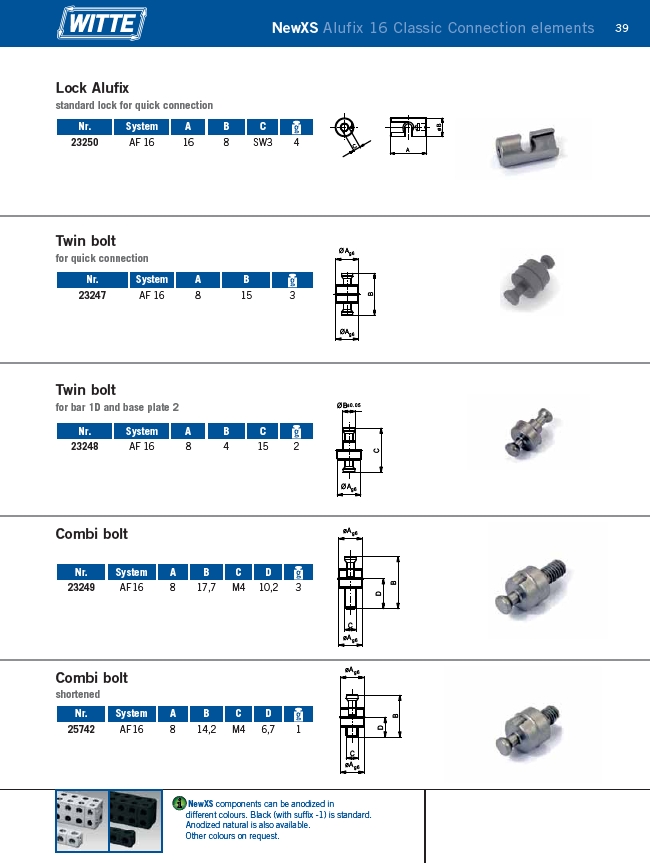

NewXS Alufix 16 Classic Connection elements
Lock Alufix
standard lock for quick connection
Nr. System A B
23247 AF 16 8 15 3
i
85 2
7
85 2
#
6
4
7
,%"
,%"
%
1
Nr. System A B C
23250 AF 16 16 8 SW3 4
Nr. System A B C
23248 AF 16 8 4 15 2
Nr. System A B C D
23249 AF 16 8 17,7 M4 10,2 3
Nr. System A B C D
25742 AF 16 8 14,2 M4 6,7 1
64 ,
7
64 ,
#
NewXS components can be anodized in
different colours. Black (with suffix -1) is standard.
Anodized natural is also available.
Other colours on request.
Twin bolt
for quick connection
Twin bolt
for bar 1D and base plate 2
Combi bolt
Combi bolt
shortened
