31

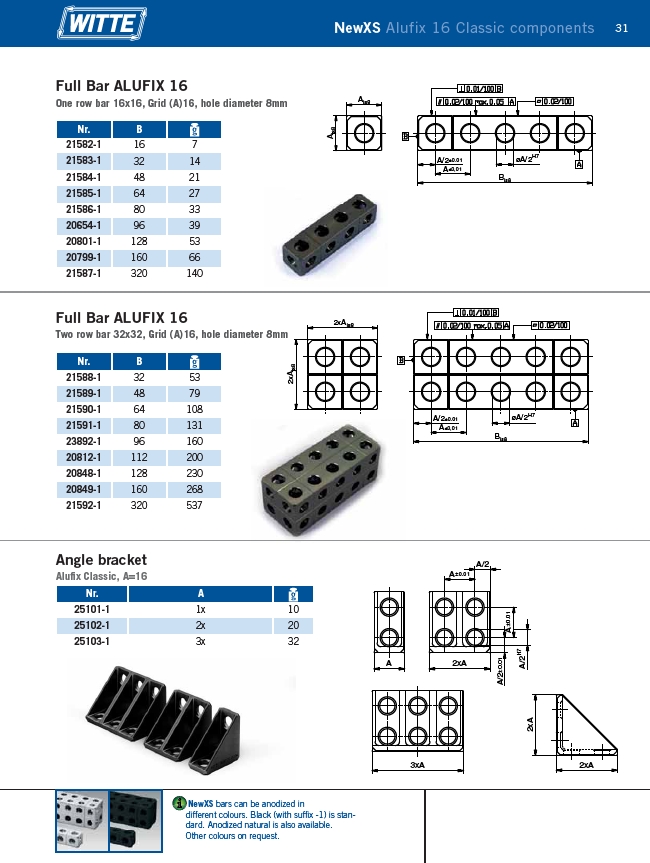

Full Bar ALUFIX 16
One row bar 16x16, Grid (A)16, hole diameter 8mm
Full Bar ALUFIX 16
Two row bar 32x32, Grid (A)16, hole diameter 8mm
i
NewXS Alufix 16 Classic components
2xAjs8
Bjs8
A/2±0.01
A±0,01
2xAjs8
øA/2H7
Ajs8
Ajs8
øA/2H7
Bjs8
A/2±0.01
A±0,01
Nr. B
21582-1 16 7
21583-1 32 14
21584-1 48 21
21585-1 64 27
21586-1 80 33
20654-1 96 39
20801-1 128 53
20799-1 160 66
21587-1 320 140
Nr. B
21588-1 32 53
21589-1 48 79
21590-1 64 108
21591-1 80 131
23892-1 96 160
20812-1 112 200
20848-1 128 230
20849-1 160 268
21592-1 320 537
A 2xA
3xA
A±0.01
A/2
A/2H7
A±0.01
A/2±0.01
Nr. A
25101-1 1x 10
25102-1 2x 20
25103-1 3x 32
2xA
2xA
NewXS bars can be anodized in
different colours. Black (with suffix -1) is standard.
Anodized natural is also available.
Other colours on request.
Angle bracket
Alufix Classic, A=16
