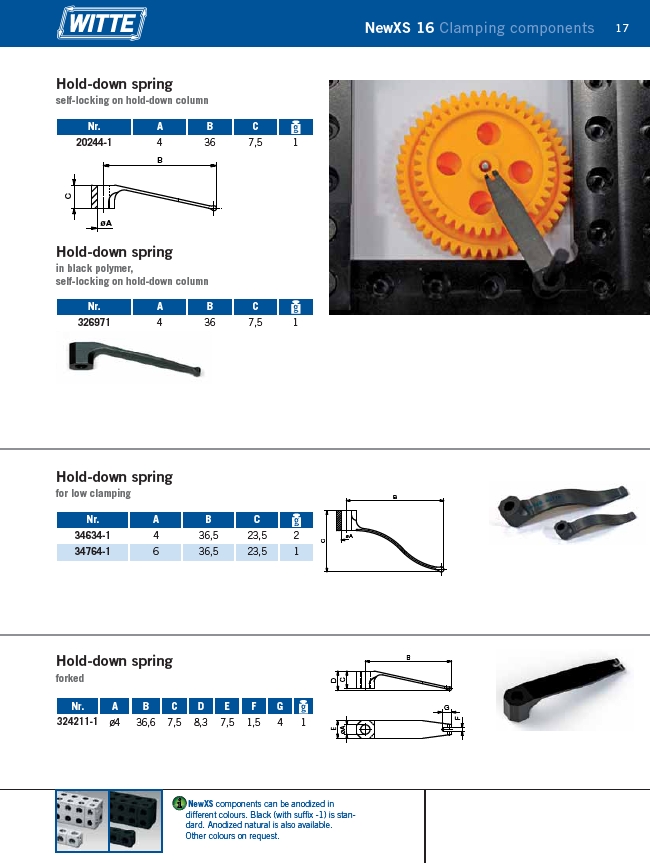

Hold-down spring
self-locking on hold-down column
C
Nr. A B C
20244-1 4 36 7,5 1
B
øA
17
Hold-down spring
in black polymer,
self-locking on hold-down column
Nr. A B C
326971 4 36 7,5 1
i
B
C
øA
øA C
D
F
G
E
B
Nr. A B C
34634-1 4 36,5 23,5 2
34764-1 6 36,5 23,5 1
Nr. A B C D E F G
324211-1 ø4 36,6 7,5 8,3 7,5 1,5 4 1
NewXS 16 Clamping components
NewXS components can be anodized in
different colours. Black (with suffix -1) is standard.
Anodized natural is also available.
Other colours on request.
Hold-down spring
for low clamping
Hold-down spring
forked
