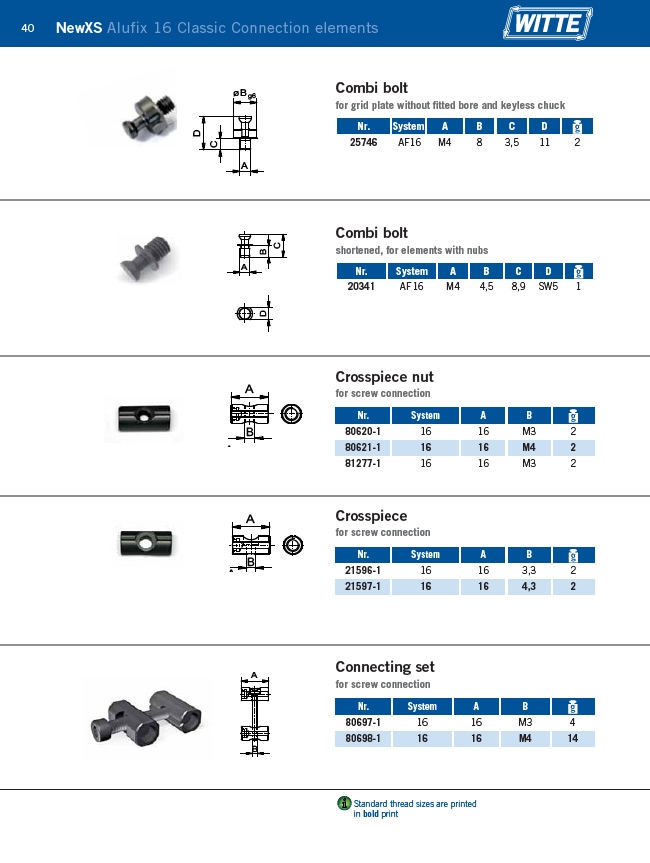

NewXS Alufix 16 Classic Connection elements
)
-
(
3
: ,
7
;
#
40
Combi bolt
for grid plate without fitted bore and keyless chuck
Nr. System A B C D
25746 AF16 M4 8 3,5 11 2
Combi bolt
shortened, for elements with nubs
Nr. System A B C D
20341 AF 16 M4 4,5 8,9 SW5 1
Crosspiece nut
for screw connection
Nr. System A B
80620-1 16 16 M3 2
80621-1 16 16 M4 2
81277-1 16 16 M3 2
Crosspiece
for screw connection
Nr. System A B
21596-1 16 16 3,3 2
21597-1 16 16 4,3 2
Connecting set
for screw connection
Nr. System A B
80697-1 16 16 M3 4
80698-1 16 16 M4 14
i
Standard thread sizes are printed
in bold print
