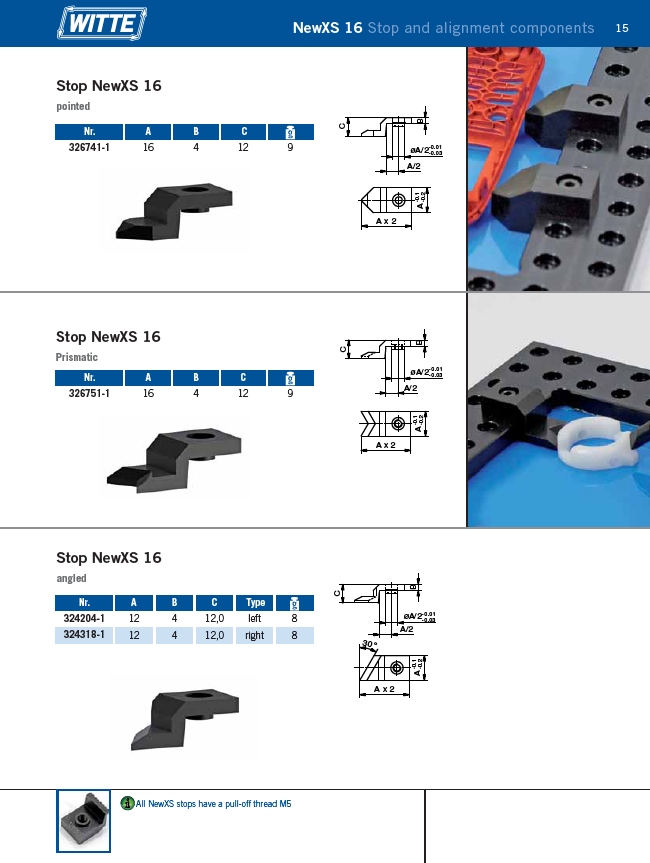

15
Stop NewXS 16
pointed
Stop NewXS 16
Prismatic
Stop NewXS 16
angled
i
NewXS 16 Stop and alignment components
øA/2-0.01
-0.03
A/2
C
A-0.1 B
-0.2
A x 2
B
øA/2-0.01
-0.03
A/2
A-0.1
-0.2 A x 2
C
B
øA/2-0.01
-0.03
A/2
C
A-0.1
-0.2
30°
A x 2
Nr. A B C
326741-1 16 4 12 9
Nr. A B C
326751-1 16 4 12 9
Nr. A B C Type
324204-1 12 4 12,0 left 8
324318-1 12 4 12,0 right 8
All NewXS stops have a pull-off thread M5
