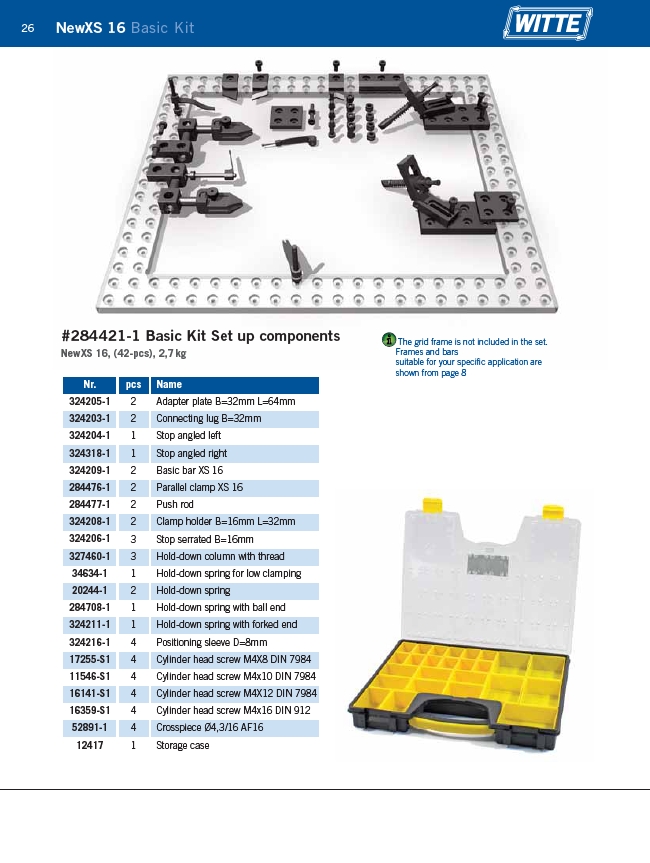

NewXS 16 Basic Kit
#284421-1 Basic Kit Set up components
NewXS 16, (42-pcs), 2,7 kg
Nr. pcs Name
324205-1 2 Adapter plate B=32mm L=64mm
324203-1 2 Connecting lug B=32mm
324204-1 1 Stop angled left
324318-1 1 Stop angled right
324209-1 2 Basic bar XS 16
284476-1 2 Parallel clamp XS 16
284477-1 2 Push rod
324208-1 2 Clamp holder B=16mm L=32mm
324206-1 3 Stop serrated B=16mm
327460-1 3 Hold-down column with thread
34634-1 1 Hold-down spring for low clamping
20244-1 2 Hold-down spring
284708-1 1 Hold-down spring with ball end
324211-1 1 Hold-down spring with forked end
324216-1 4 Positioning sleeve D=8mm
17255-S1 4 Cylinder head screw M4X8 DIN 7984
11546-S1 4 Cylinder head screw M4x10 DIN 7984
16141-S1 4 Cylinder head screw M4X12 DIN 7984
16359-S1 4 Cylinder head screw M4x16 DIN 912
52891-1 4 Crosspiece Ø4,3/16 AF16
12417 1 Storage case
The grid frame is not included in the set.
Frames and bars
suitable for your specific application are
shown from page 8
