21
��
��
����
��
����
��
����
��
����
øD
SøE
60°
A
C
øB
��
��
��
����������
��
��
��
��
Nr. A B C D
81585-1 31,2 48 16 M12X0,5 20
Nr. A B C D E F
85423-1 46,8 16,9 8 9,3 M6 7 5
85443-1 85 22,2 8 17,5 M6 13 10
Nr. A B C D
23638-1 M12 x 0,5 16 27,5 8 10
54031-1 M12 x 0,5 16 13,75 22 10
Nr. A B C D E
85676-1 M12 x 0,5 16 28,5 ø8 ø3 4
i

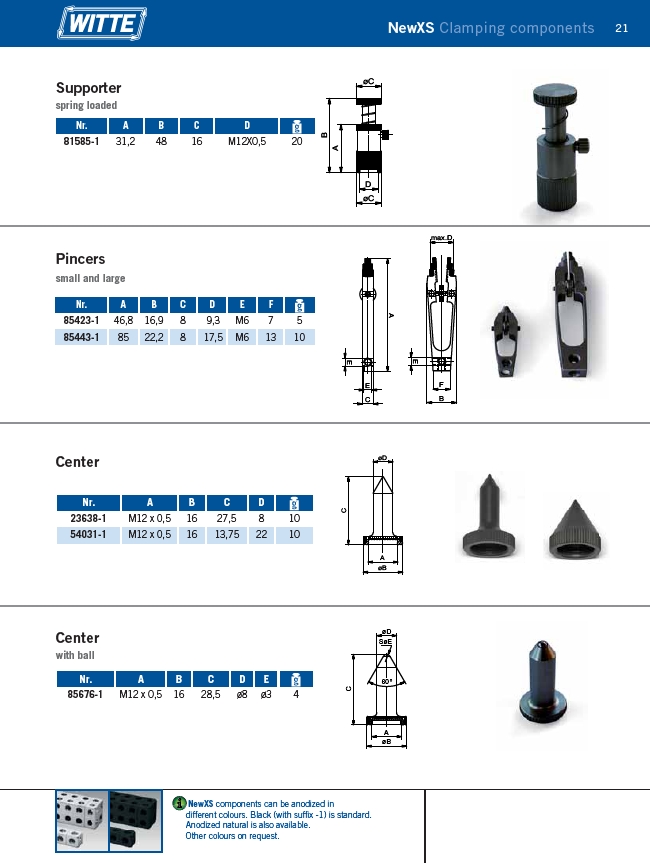

NewXS Clamping components
Pincers
small and large
NewXS components can be anodized in
different colours. Black (with suffix -1) is standard.
Anodized natural is also available.
Other colours on request.
Supporter
spring loaded
Center
Center
with ball
