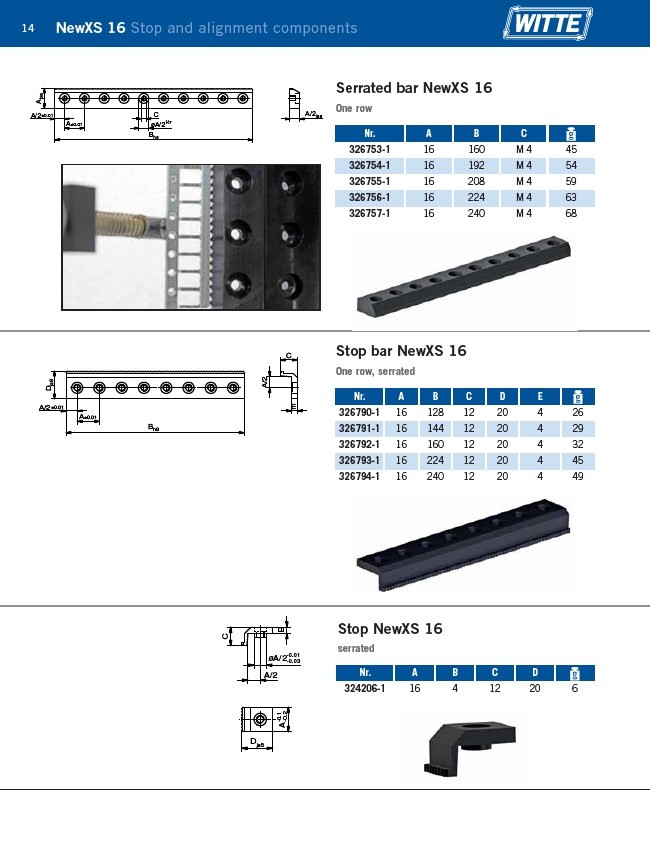

NewXS 16 Stop and alignment components
Serrated bar NewXS 16
One row
Stop bar NewXS 16
One row, serrated
Nr. A B C D E
326790-1 16 128 12 20 4 26
326791-1 16 144 12 20 4 29
326792-1 16 160 12 20 4 32
326793-1 16 224 12 20 4 45
326794-1 16 240 12 20 4 49
����������������
������������
C A/2js8
øA/2H7
������
��������
��
��
������
øA/2-0.01
A-0.1
-0.2
Djs8
A/2
-0.03
B
C
14
Nr. A B C
326753-1 16 160 M 4 45
326754-1 16 192 M 4 54
326755-1 16 208 M 4 59
326756-1 16 224 M 4 63
326757-1 16 240 M 4 68
A/2±0.01
A±0.01
Bh8
Ajs8
Stop NewXS 16
serrated
Nr. A B C D
324206-1 16 4 12 20 6
