23
i
A
D
C
B
Nr. A B C D
32440-1 M6 31 9,8 11,8 10
Nr. A B C D E F
32453-1 1,0 11 8 28 5 14,5 3
32463-1 1,5 11 8 28 5 14,5 3
32464-1 2,0 11 8 28 5 14,5 3
32465-1 2,5 11 8 28 5 14,5 3
32466-1 3,0 11 8 28 5 14,5 3
32467-1 3,5 11 8 28 5 14,5 3
32468-1 4,0 11 8 28 5 14,5 3
32469-1 4,5 11 8 28 5 14,5 3
32470-1 5,0 11 8 28 5 14,5 3
32471-1 5,5 11 8 28 5 14,5 3
32472-1 6,0 11 8 28 5 14,5 3
øD
øB
øA
E
D
øC
20°
(F)
A
B
øC
Nr. A B C D max. load
85411 130 70 M6 M6 30 N 135

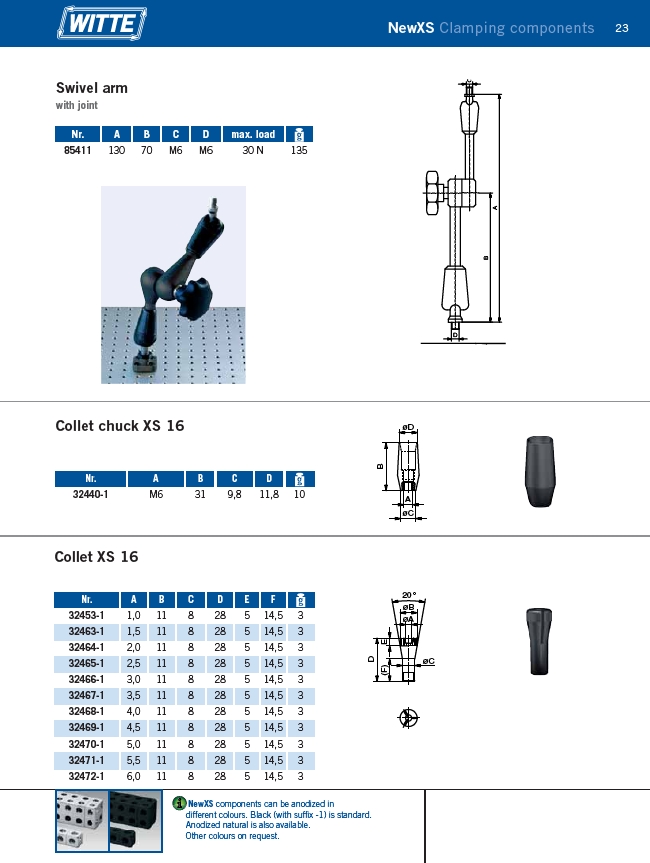

NewXS Clamping components
NewXS components can be anodized in
different colours. Black (with suffix -1) is standard.
Anodized natural is also available.
Other colours on request.
Swivel arm
with joint
Collet chuck XS 16
Collet XS 16
