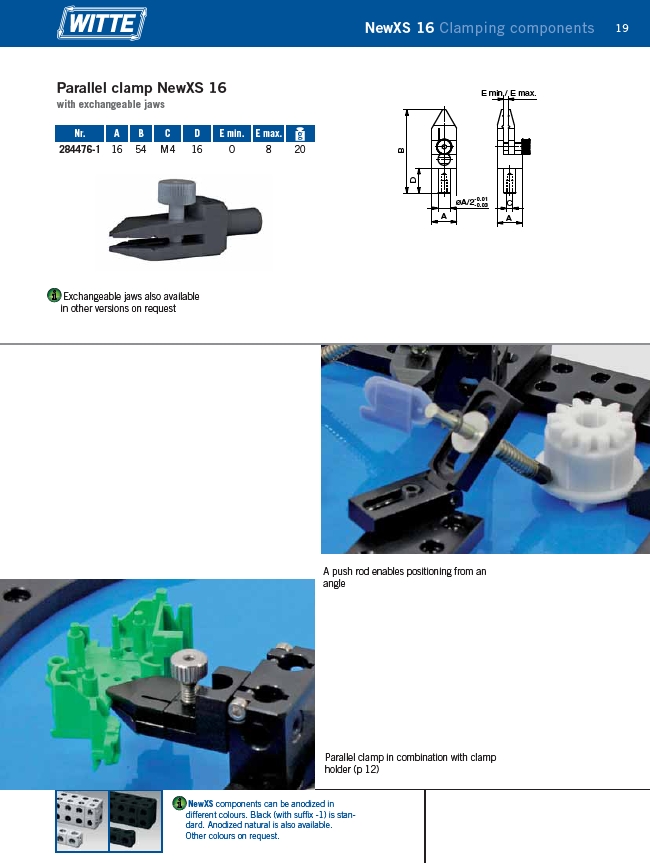

NewXS 16 Clamping components
E min./ E max.
øA/2-0.01
-0.03
D
B
C
A A
19
Nr. A B C D E min. E max.
284476-1 16 54 M 4 16 0 8 20
Exchangeable jaws also available
in other versions on request
i
i
A push rod enables positioning from an
angle
Parallel clamp in combination with clamp
holder (p 12)
Parallel clamp NewXS 16
with exchangeable jaws
NewXS components can be anodized in
different colours. Black (with suffix -1) is standard.
Anodized natural is also available.
Other colours on request.
