Nr. A B(AF) C D E F
80923-1 24 16 1 M4 3 8 9
Nr. A B(AF) C D E F G
80921-1 24 16 1 M4 3 8 7 10
Nr. A B(AF) C D E F
80922-1 24 16 1 M4 3 8 10
D
max ø
90°
A
C
B
E
øF-0.03
-0.08
9 8
01
+
7
8
#
:9)(%(
)(%(0
i

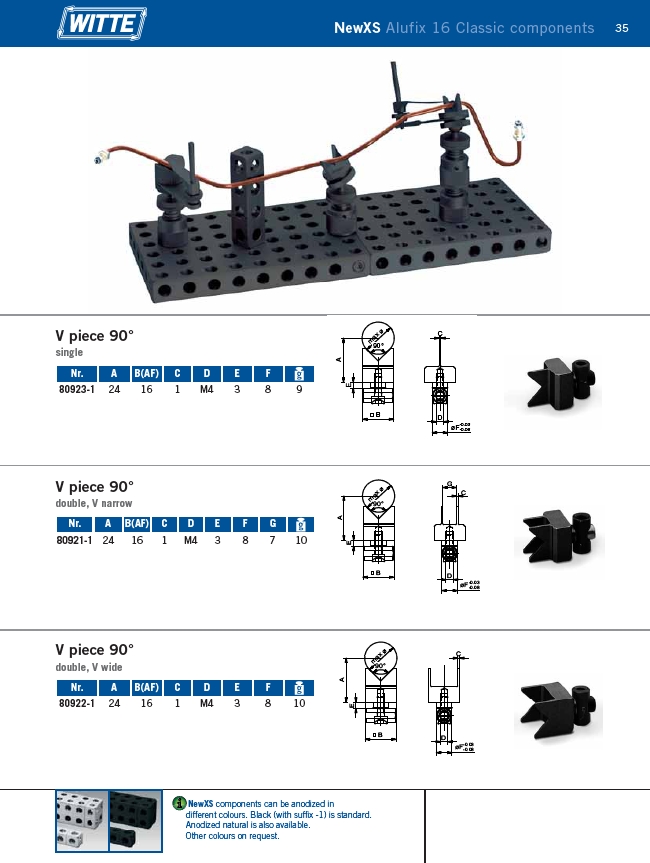

NewXS Alufix 16 Classic components
V piece 90°
single
V piece 90°
double, V narrow
V piece 90°
double, V wide
NewXS components can be anodized in
different colours. Black (with suffix -1) is standard.
Anodized natural is also available.
Other colours on request.
