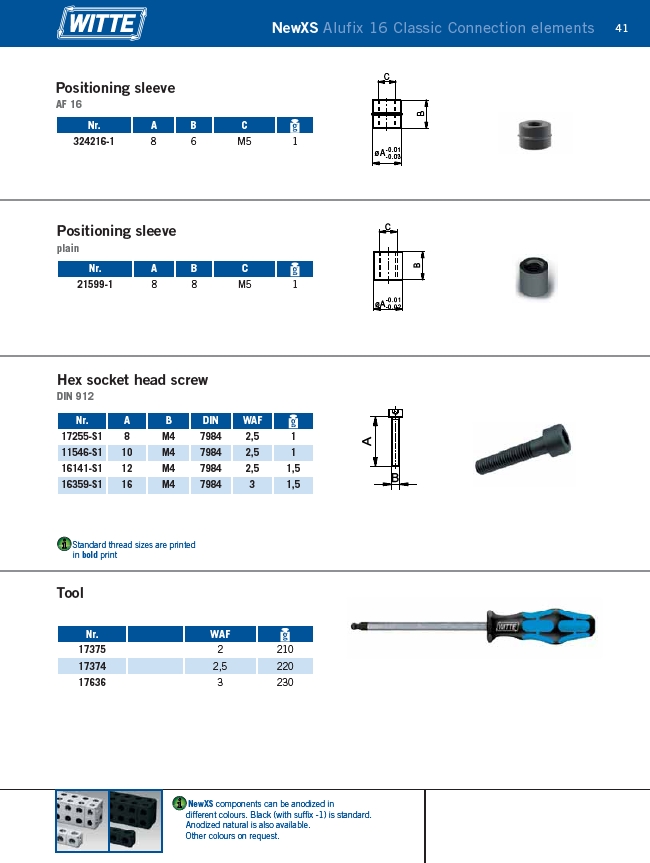

NewXS Alufix 16 Classic Connection elements
C
øA-0.01
-0.03
B
%
%
Positioning sleeve
AF 16
Nr. A B C
324216-1 8 6 M5 1
Positioning sleeve
plain
Nr. A B C
21599-1 8 8 M5 1
41
Hex socket head screw
DIN 912
Standard thread sizes are printed
in bold print
i
i
Nr. A B DIN WAF
17255-S1 8 M4 7984 2,5 1
11546-S1 10 M4 7984 2,5 1
16141-S1 12 M4 7984 2,5 1,5
16359-S1 16 M4 7984 3 1,5
Tool
Nr. WAF
17375 2 210
17374 2,5 220
17636 3 230
NewXS components can be anodized in
different colours. Black (with suffix -1) is standard.
Anodized natural is also available.
Other colours on request.
