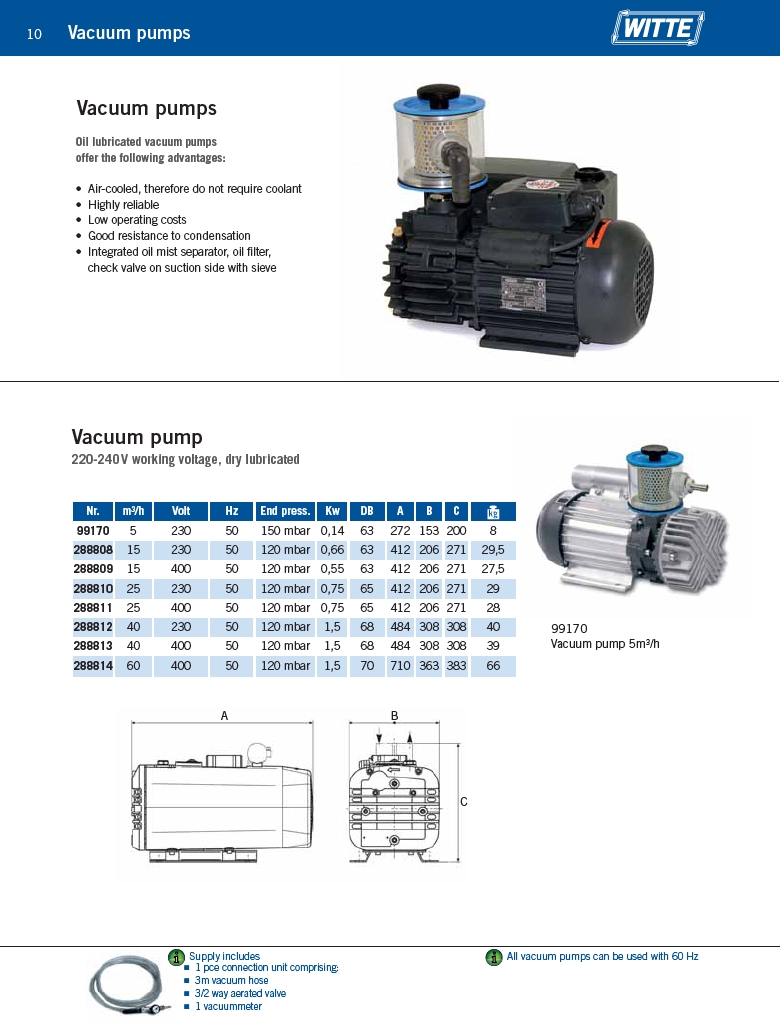

Vacuum pumps
Oil lubricated vacuum pumps
offer the following advantages:
• Air-cooled, therefore do not require coolant
• Highly reliable
• Low operating costs
• Good resistance to condensation
• Integrated oil mist separator, oil filter,
check valve on suction side with sieve
Vacuum pump
220-240 V working voltage, dry lubricated
Nr. m3/h Volt Hz End press. Kw DB A B C
99170 5 230 50 150 mbar 0,14 63 272 153 200 8
288808 15 230 50 120 mbar 0,66 63 412 206 271 29,5
288809 15 400 50 120 mbar 0,55 63 412 206 271 27,5
288810 25 230 50 120 mbar 0,75 65 412 206 271 29
288811 25 400 50 120 mbar 0,75 65 412 206 271 28
288812 40 230 50 120 mbar 1,5 68 484 308 308 40
288813 40 400 50 120 mbar 1,5 68 484 308 308 39
288814 60 400 50 120 mbar 1,5 70 710 363 383 66
A B
C
i i
99170
Vacuum pump 5m3/h
Vacuum pumps
Supply includes
1 pce connection unit comprising:
3m vacuum hose
3/2 way aerated valve
1 vacuummeter
All vacuum pumps can be used with 60 Hz
