52
C
A
B C
A
B

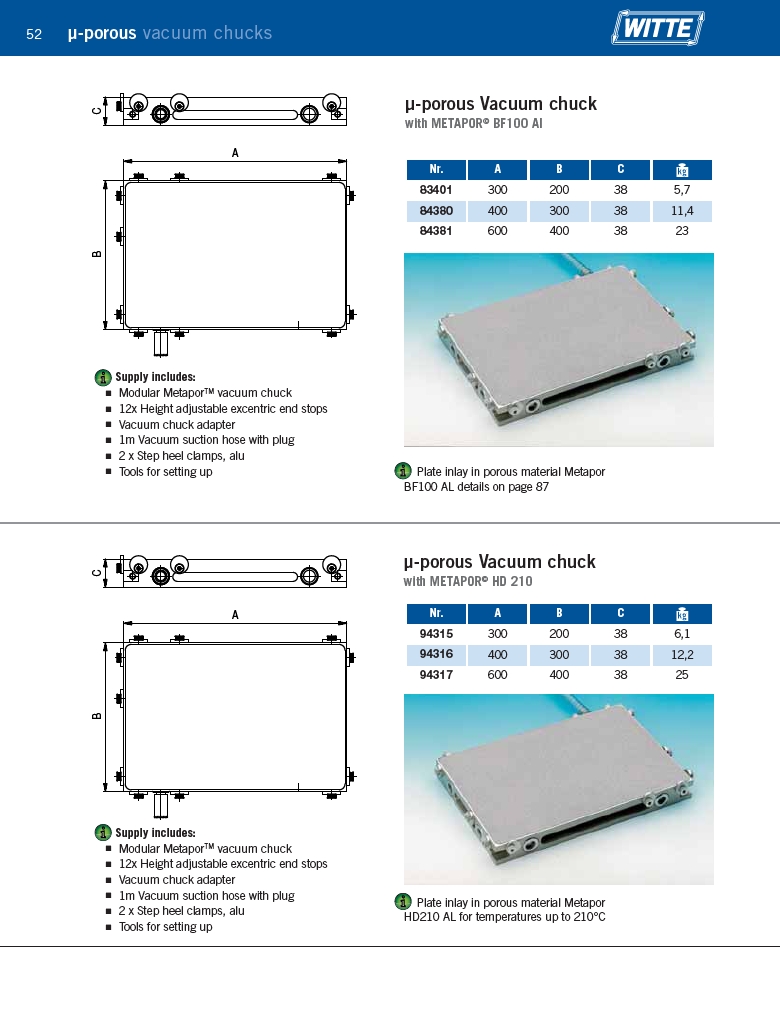

μ-porous Vacuum chuck
with METAPOR© BF100 Al
i
i
i
Plate inlay in porous material Metapor
BF100 AL details on page 87
i
Nr. A B C
83401 300 200 38 5,7
84380 400 300 38 11,4
84381 600 400 38 23
Nr. A B C
94315 300 200 38 6,1
94316 400 300 38 12,2
94317 600 400 38 25
μ-porous vacuum chucks
μ-porous Vacuum chuck
with METAPOR© HD 210
Plate inlay in porous material Metapor
HD210 AL for temperatures up to 210°C
Supply includes:
Modular MetaporTM vacuum chuck
12x Height adjustable excentric end stops
Vacuum chuck adapter
1m Vacuum suction hose with plug
2 x Step heel clamps, alu
Tools for setting up
Supply includes:
Modular MetaporTM vacuum chuck
12x Height adjustable excentric end stops
Vacuum chuck adapter
1m Vacuum suction hose with plug
2 x Step heel clamps, alu
Tools for setting up
