47
i
Nr. A B C
00280 200 300 3 260
00849 200 500 3 378
00850 200 600 3 453
00851 150 300 3 170
00825 200 400 3 360
00852 250 350 3 392
00853 300 300 3 410
00796 250 400 3 370
00854 300 400 3 540
00855 400 400 3 710
00856 400 500 3 880
00857 500 500 3 1100
00858 300 600 3 683
00791 400 600 3 1100
00859 500 1000 3 1900
00860 1000 1000 3 3800
00861 1000 2000 3 8000
i

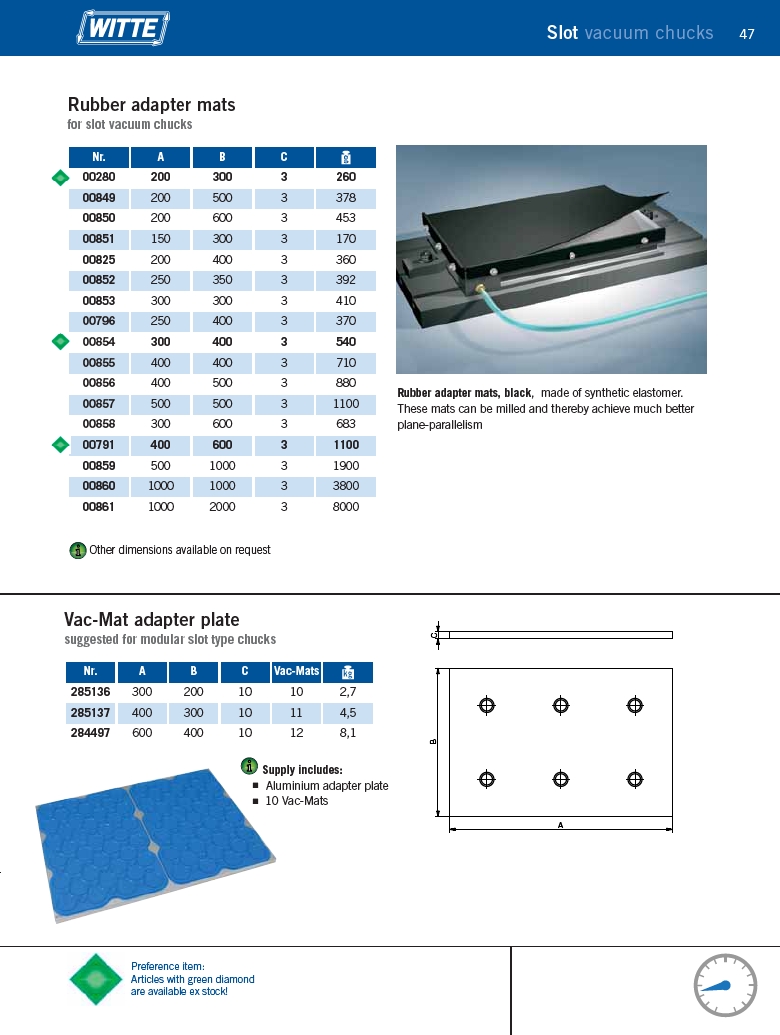

Slot vacuum chucks
A
B C
Nr. A B C Vac-Mats
285136 300 200 10 10 2,7
285137 400 300 10 11 4,5
284497 600 400 10 12 8,1
Rubber adapter mats, black, made of synthetic elastomer.
These mats can be milled and thereby achieve much better
plane-parallelism
Rubber adapter mats
for slot vacuum chucks
Other dimensions available on request
Vac-Mat adapter plate
suggested for modular slot type chucks
Supply includes:
Aluminium adapter plate
10 Vac-Mats
Preference item:
Articles with green diamond
are available ex stock!
