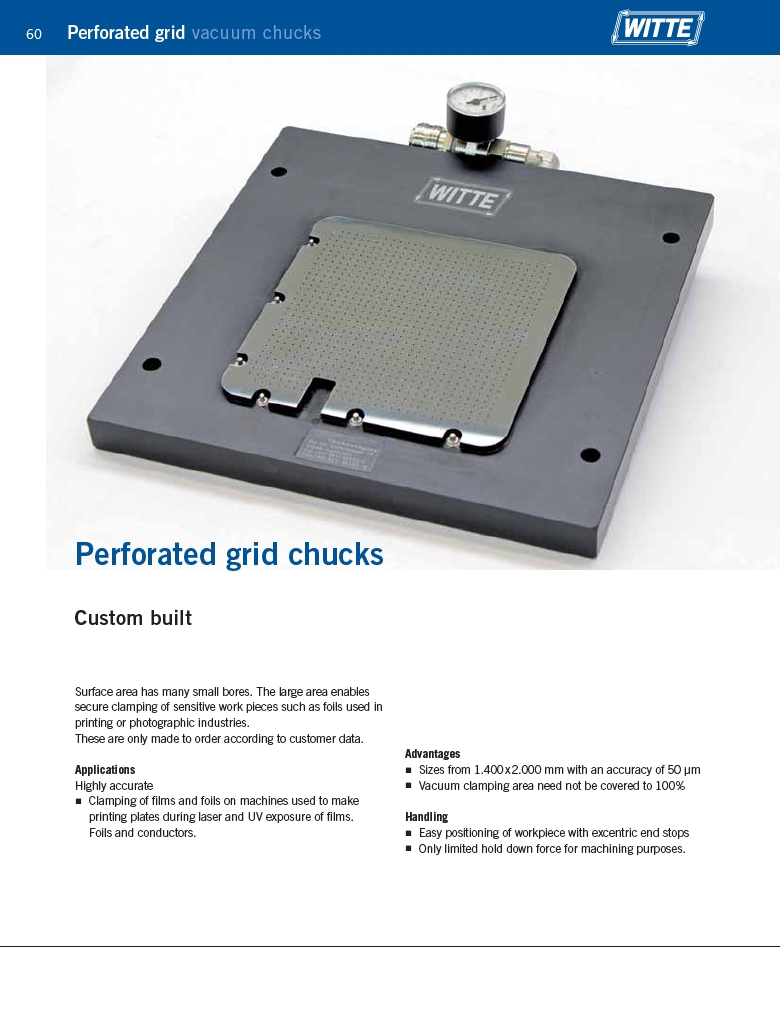

Perforated grid chucks
Custom built
Surface area has many small bores. The large area enables
secure clamping of sensitive work pieces such as foils used in
printing or photographic industries.
These are only made to order according to customer data.
Applications
Highly accurate
Clamping of films and foils on machines used to make
printing plates during laser and UV exposure of films.
Foils and conductors.
Advantages
Sizes from 1.400 x 2.000 mm with an accuracy of 50 μm
Vacuum clamping area need not be covered to 100%
Handling
Easy positioning of workpiece with excentric end stops
Only limited hold down force for machining purposes.
Perforated grid vacuum chucks
