Slot chuck with perforated rubber
adapter mat
Vakuum Spannplatten
Workpieces with small surfaces
Witte VAC-MATTM
Chuck with insert made out of
sintered metal or Witte Metapor©
for foils and skins

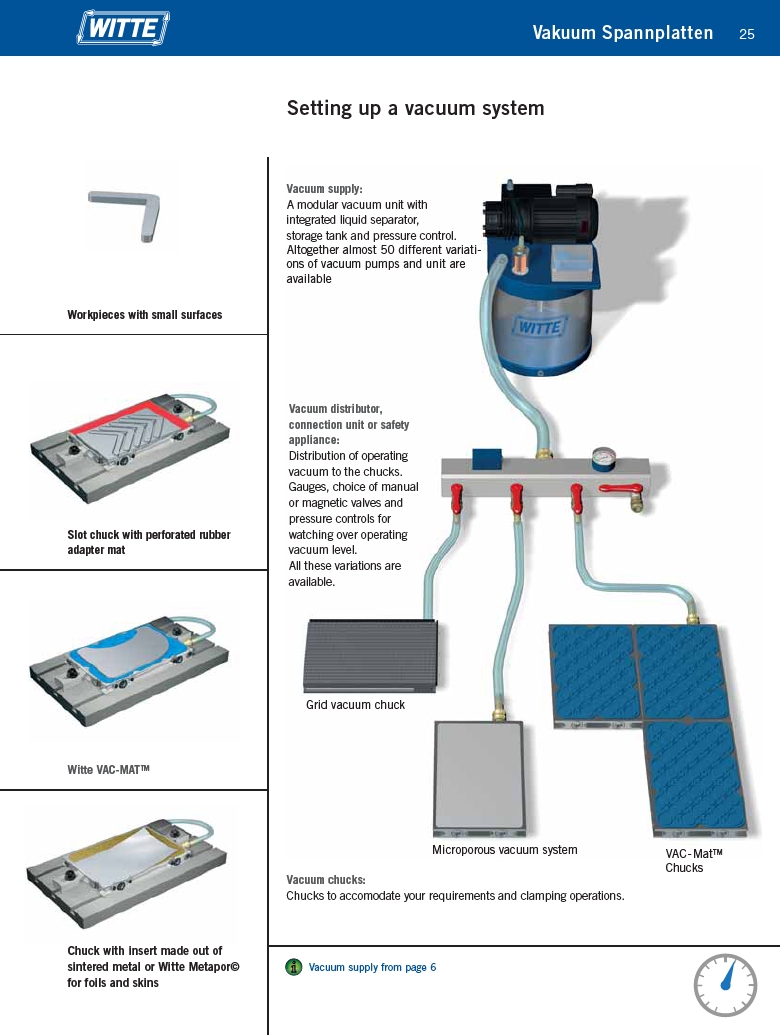

Setting up a vacuum system
Vacuum supply:
A modular vacuum unit with
integrated liquid separator,
storage tank and pressure control.
Altogether almost 50 different variations
of vacuum pumps and unit are
available
Vacuum distributor,
connection unit or safety
appliance:
Distribution of operating
vacuum to the chucks.
Gauges, choice of manual
or magnetic valves and
pressure controls for
watching over operating
vacuum level.
All these variations are
available.
Grid vacuum chuck
Microporous vacuum system VAC - MatTM
Vacuum chucks:
Chucks to accomodate your requirements and clamping operations.
Vacuum supply from page 6
Chucks
