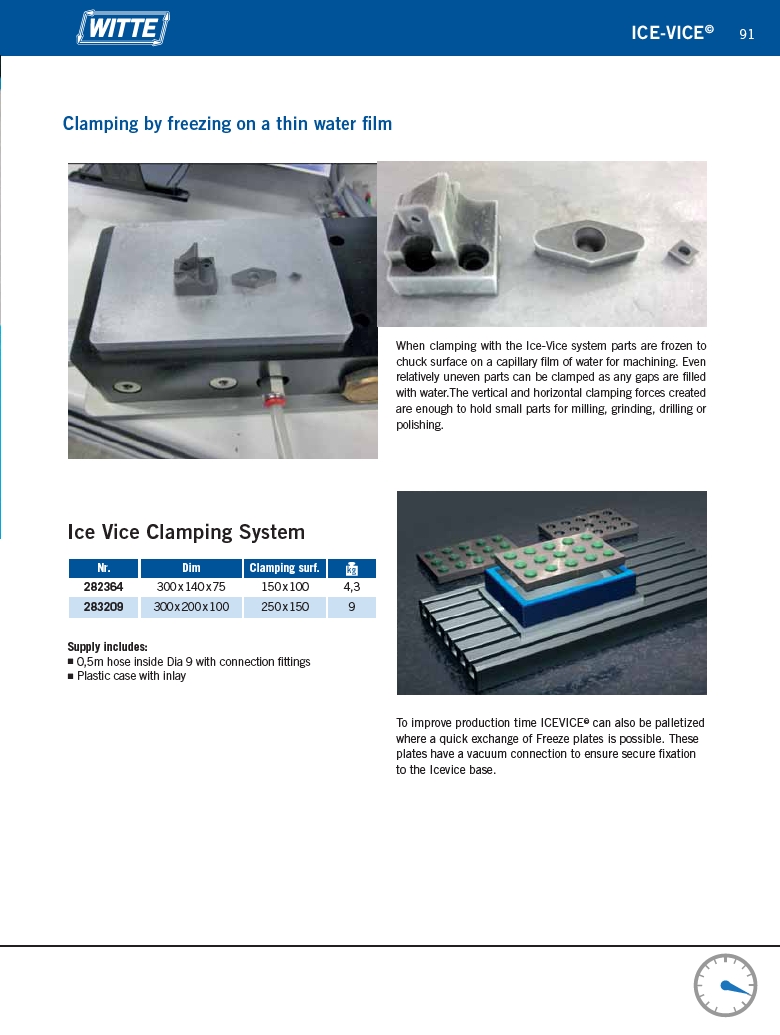

91 ICE-VICE©
Clamping by freezing on a thin water film
When clamping with the Ice-Vice system parts are frozen to
chuck surface on a capillary film of water for machining. Even
relatively uneven parts can be clamped as any gaps are filled
with water.The vertical and horizontal clamping forces created
are enough to hold small parts for milling, grinding, drilling or
polishing.
To improve production time ICEVICE© can also be palletized
where a quick exchange of Freeze plates is possible. These
plates have a vacuum connection to ensure secure fixation
to the Icevice base.
Ice Vice Clamping System
Nr. Dim Clamping surf.
282364 300 x 140 x 75 150 x 100 4,3
283209 300 x 200 x 100 250 x 150 9
Supply includes:
0,5m hose inside Dia 9 with connection fittings
Plastic case with inlay
