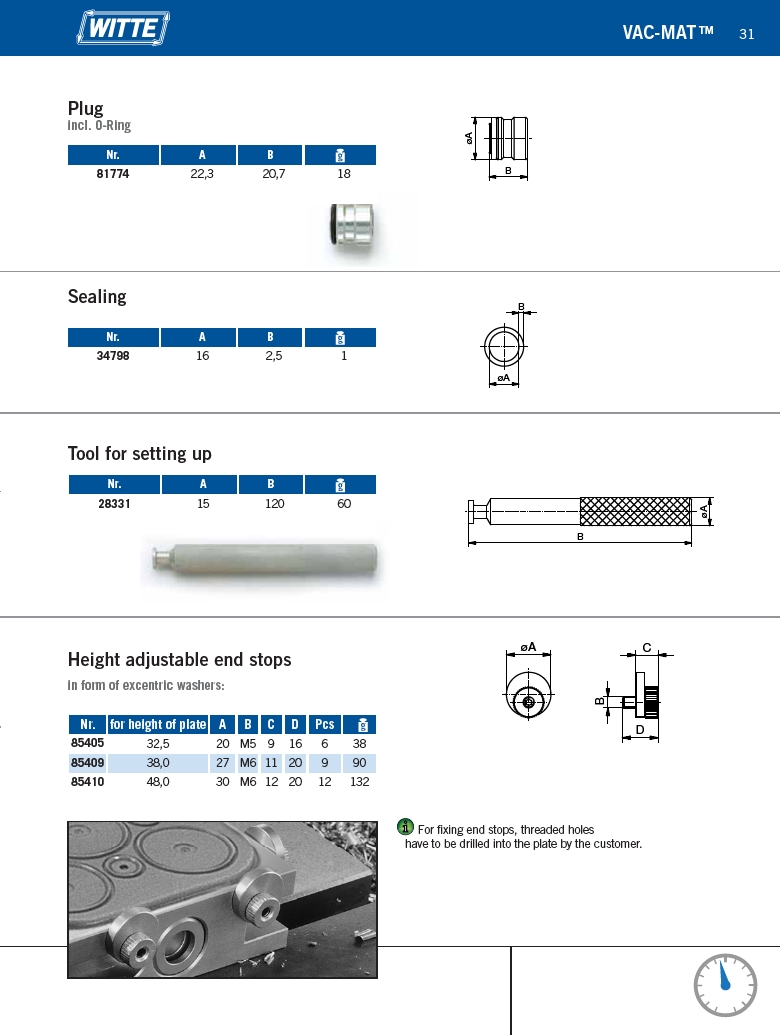

31
i
VAC-MAT TM
øA
B
øA
B
øA
B
øA C
B
D
Plug
incl. O-Ring
Nr. A B
81774 22,3 20,7 18
Sealing
Nr. A B
34798 16 2,5 1
Tool for setting up
Nr. A B
28331 15 120 60
For fixing end stops, threaded holes
have to be drilled into the plate by the customer.
Height adjustable end stops
in form of excentric washers:
Nr. for height of plate A B C D Pcs
85405 32,5 20 M5 9 16 6 38
85409 38,0 27 M6 11 20 9 90
85410 48,0 30 M6 12 20 12 132
