76
Nr. A B C D
80910 88 43 G1/4“ 12/8 400
80261 98 43 G3/8“ 12/8 400
80262 120 55 G1/2“ 15/12 1300
C
z u r P ump e
To z u vacuum r V a ku u m p l a chuck
t t e /
R u n d f u t t e r
C
L = 1D, 5 m
D
L = 1m
A
øB
SW17
Nr.: A B
80261 113
Kat a l o g z e ichnung
80262
i
C D
55 R1/2" Ø15/12
98 43 R3/8" Ø12/8
80910 92 43 5/8"-18 UNF Ø12/8
i Supply includes:
3/2 way aerated valve
3m vacuum hose
1 vacuummeter
2 hose fittings
Connection unit
Nr. Type For hose dia
80102 straight 12mm
82519 straight 18mm
82952 straight 24mm
82902 straight 32mm
82953 straight 50mm
Accessories

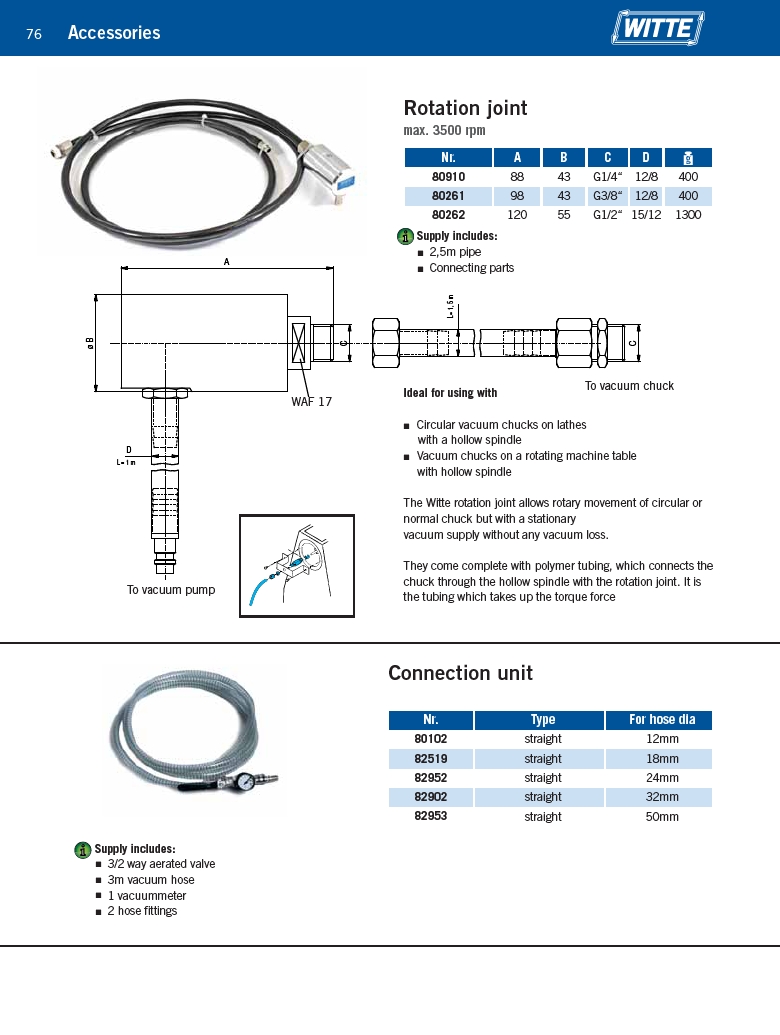

Rotation joint
max. 3500 rpm
Supply includes:
2,5m pipe
Connecting parts
Ideal for using with
Circular vacuum chucks on lathes
with a hollow spindle
Vacuum chucks on a rotating machine table
with hollow spindle
The Witte rotation joint allows rotary movement of circular or
normal chuck but with a stationary
vacuum supply without any vacuum loss.
They come complete with polymer tubing, which connects the
chuck through the hollow spindle with the rotation joint. It is
the tubing which takes up the torque force
To vacuum pump
WAF 17
