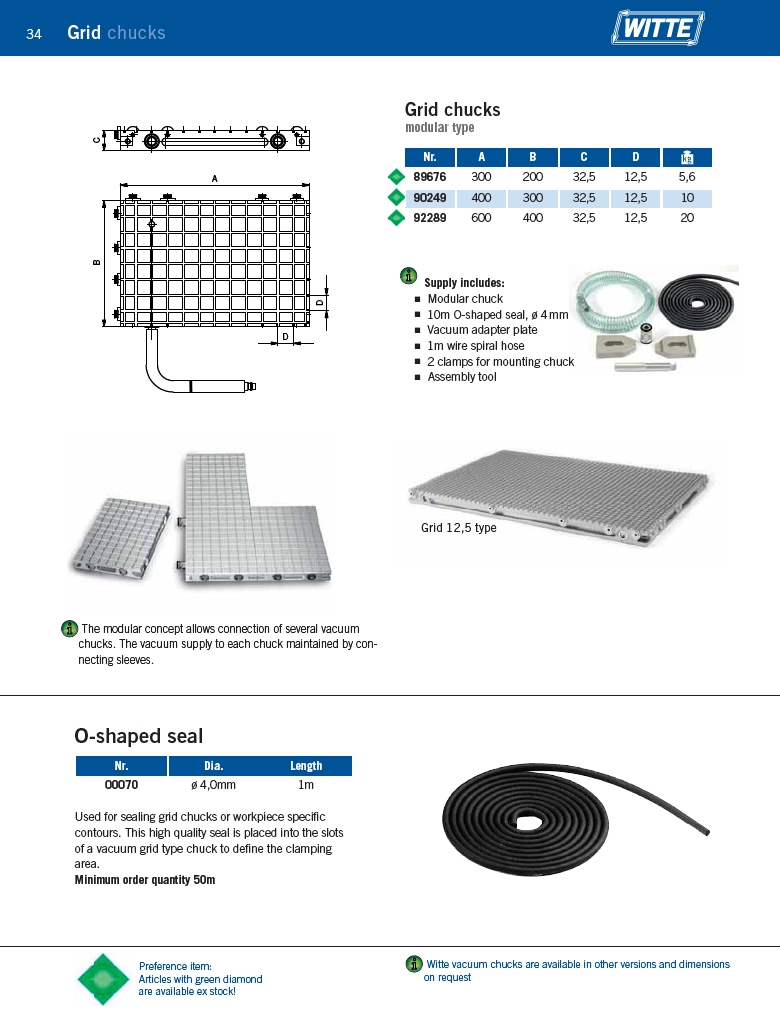

34
C
A
B
D
D
i
i
i
Nr. A B C D
89676 300 200 32,5 12,5 5,6
90249 400 300 32,5 12,5 10
92289 600 400 32,5 12,5 20
The modular concept allows connection of several vacuum
chucks. The vacuum supply to each chuck maintained by connecting
sleeves.
Grid 12,5 type
Grid chucks
Supply includes:
Modular chuck
10m O-shaped seal, ø 4 mm
Vacuum adapter plate
1m wire spiral hose
2 clamps for mounting chuck
Assembly tool
O-shaped seal
Nr. Dia. Length
00070 ø 4,0mm 1m
Used for sealing grid chucks or workpiece specific
contours. This high quality seal is placed into the slots
of a vacuum grid type chuck to define the clamping
area.
Minimum order quantity 50m
Grid chucks
modular type
Witte vacuum chucks are available in other versions and dimensions
on request
Preference item:
Articles with green diamond
are available ex stock!
