VAC-MAT TM
NewXS Elemente
können in unterschiedlichen Farben
In modular chucks additional holes
can be drilled in the green areas to
allow insertion of pins for positioning.
Further information on page 104.

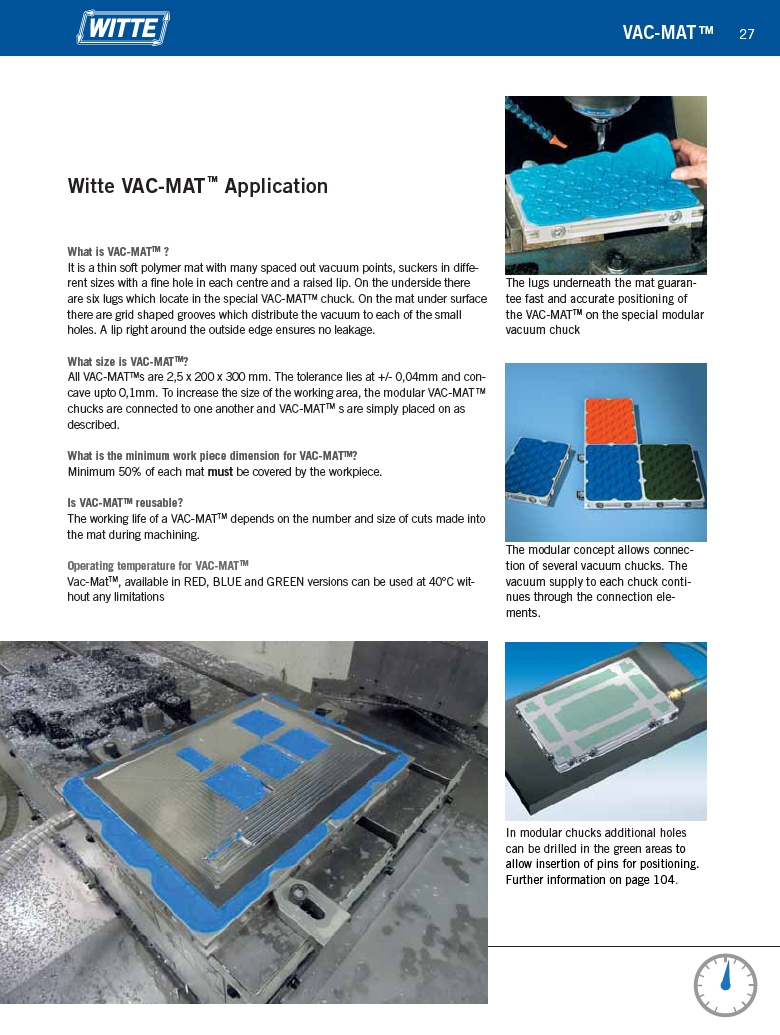

Witte VAC-MATTM Application
What is VAC-MATTM ?
It is a thin soft polymer mat with many spaced out vacuum points, suckers in different
sizes with a fine hole in each centre and a raised lip. On the underside there
are six lugs which locate in the special VAC-MATTM chuck. On the mat under surface
there are grid shaped grooves which distribute the vacuum to each of the small
holes. A lip right around the outside edge ensures no leakage.
What size is VAC-MATTM?
All VAC-MATTMs are 2,5 x 200 x 300 mm. The tolerance lies at +/- 0,04mm and concave
upto 0,1mm. To increase the size of the working area, the modular VAC-MATTM
chucks are connected to one another and VAC-MATTM s are simply placed on as
described.
What is the minimum work piece dimension for VAC-MATTM?
Minimum 50% of each mat must be covered by the workpiece.
Is VAC-MATTM reusable?
The working life of a VAC-MATTM depends on the number and size of cuts made into
the mat during machining.
Operating temperature for VAC-MATTM
Vac-MatTM, available in RED, BLUE and GREEN versions can be used at 40°C without
any limitations
The lugs underneath the mat guarantee
fast and accurate positioning of
the VAC-MATTM on the special modular
vacuum chuck
The modular concept allows connection
of several vacuum chucks. The
vacuum supply to each chuck continues
through the connection elements.
