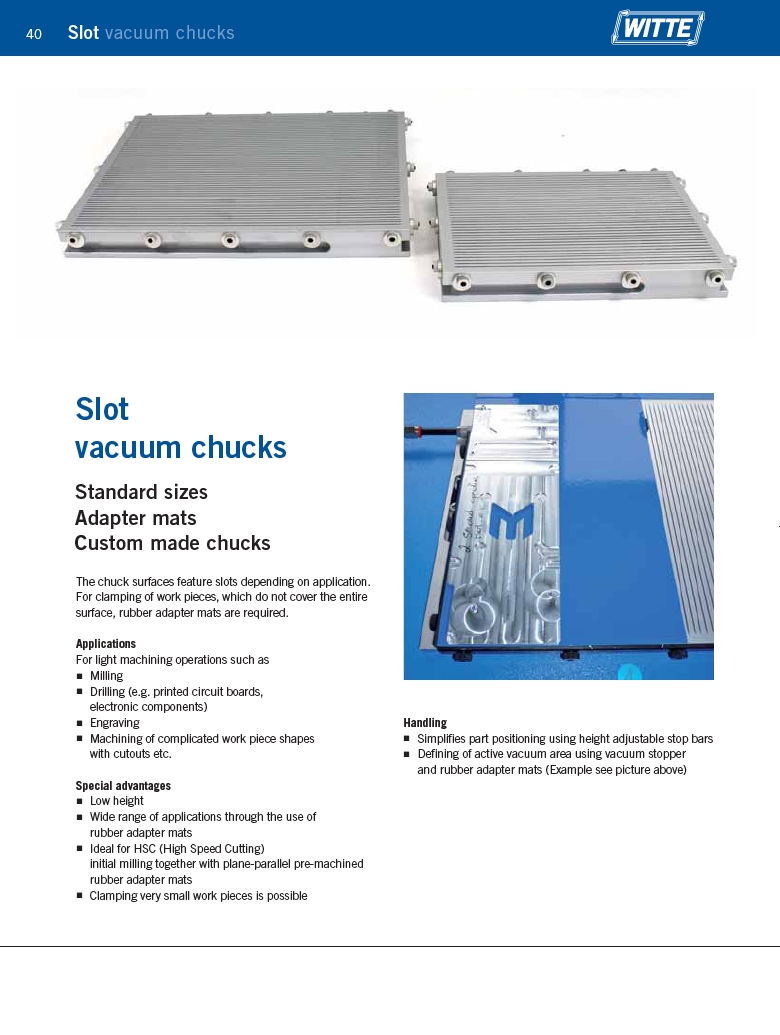

Slot
vacuum chucks
Standard sizes
Adapter mats
Custom made chucks
The chuck surfaces feature slots depending on application.
For clamping of work pieces, which do not cover the entire
surface, rubber adapter mats are required.
Applications
For light machining operations such as
Milling
Drilling (e.g. printed circuit boards,
electronic components)
Engraving
Machining of complicated work piece shapes
with cutouts etc.
Special advantages
Low height
Wide range of applications through the use of
rubber adapter mats
Ideal for HSC (High Speed Cutting)
initial milling together with plane-parallel pre-machined
rubber adapter mats
Clamping very small work pieces is possible
Handling
Simplifies part positioning using height adjustable stop bars
Defining of active vacuum area using vacuum stopper
and rubber adapter mats (Example see picture above)
