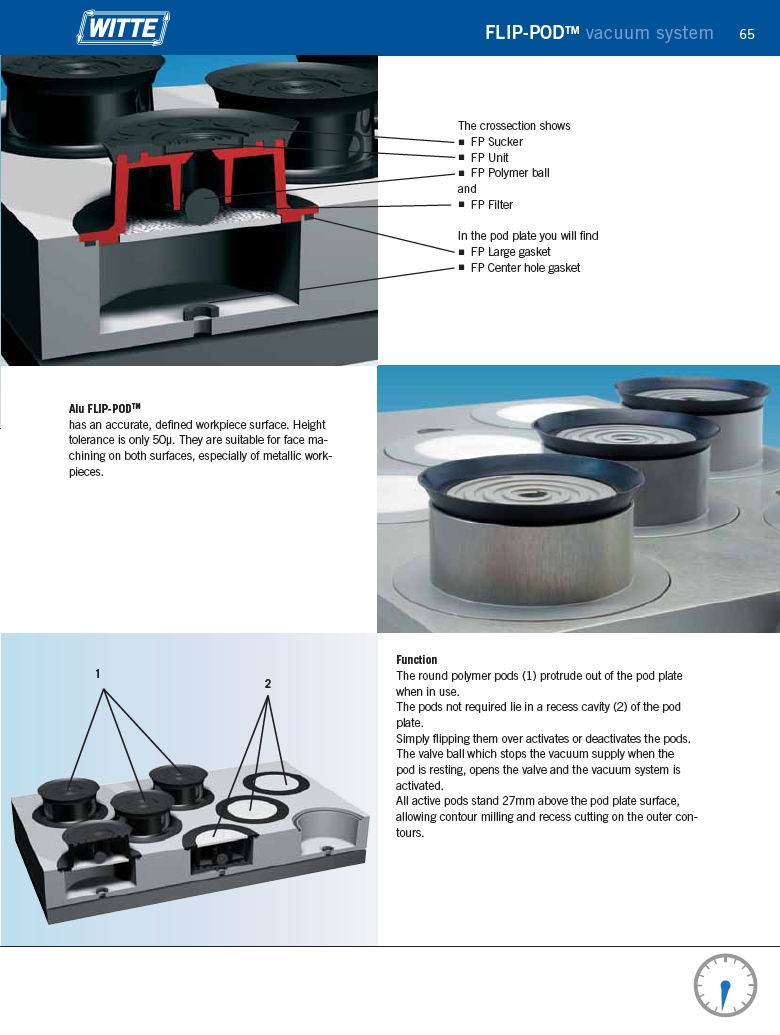

FLIP-PODTM vacuum system
Alu FLIP-PODTM
has an accurate, defined workpiece surface. Height
tolerance is only 50μ. They are suitable for face machining
on both surfaces, especially of metallic workpieces.
The crossection shows
FP Sucker
FP Unit
FP Polymer ball
and
FP Filter
In the pod plate you will find
FP Large gasket
FP Center hole gasket
Function
The round polymer pods (1) protrude out of the pod plate
when in use.
The pods not required lie in a recess cavity (2) of the pod
plate.
Simply flipping them over activates or deactivates the pods.
The valve ball which stops the vacuum supply when the
pod is resting, opens the valve and the vacuum system is
activated.
All active pods stand 27mm above the pod plate surface,
allowing contour milling and recess cutting on the outer contours.
