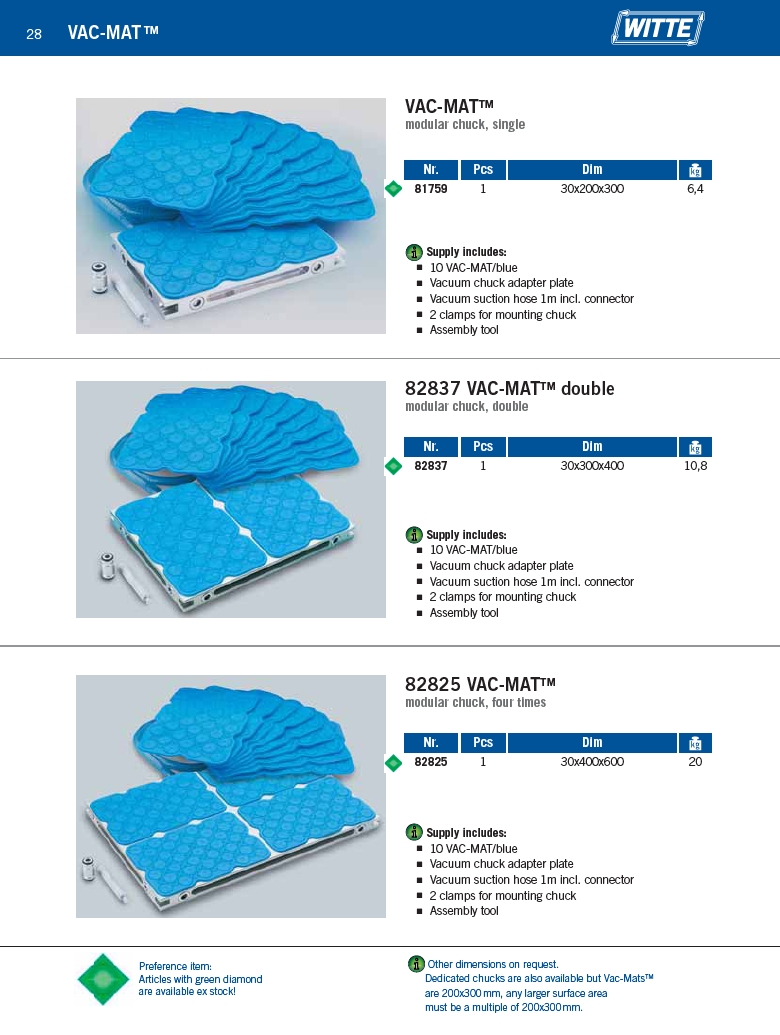

28
VAC-MATTM
modular chuck, single
Nr. Pcs Dim
81759 1 30x200x300 6,4
Supply includes:
10 VAC-MAT/blue
Vacuum chuck adapter plate
Vacuum suction hose 1m incl. connector
2 clamps for mounting chuck
Assembly tool
82837 VAC-MATTM double
modular chuck, double
Nr. Pcs Dim
82837 1 30x300x400 10,8
Supply includes:
10 VAC-MAT/blue
Vacuum chuck adapter plate
Vacuum suction hose 1m incl. connector
2 clamps for mounting chuck
Assembly tool
82825 VAC-MATTM
modular chuck, four times
Nr. Pcs Dim
82825 1 30x400x600 20
i
VAC-MAT TM
i
i
i
Supply includes:
10 VAC-MAT/blue
Vacuum chuck adapter plate
Vacuum suction hose 1m incl. connector
2 clamps for mounting chuck
Assembly tool
Other dimensions on request.
Dedicated chucks are also available but Vac-MatsTM
are 200x300 mm, any larger surface area
must be a multiple of 200x300 mm.
Preference item:
Articles with green diamond
are available ex stock!
