43
B
A
C
E
D
F
Nr. A B C D E F
95167 300 200 32 209 309 30 5,3
284555 400 300 32 409 309 30 10,6
284556 600 400 32 409 609 30 21,2
i
Slot vacuum chucks
1. Vacuum generation simply by using compressed air on site:
The built-in vacuum pump (Venturi system) requires operating
pressure of 4-6 bar.
Ultimate vacuum is is 150mbar absolute (85% vacuum).
Air consumption is 30-42 l/min. An integrated silencer reduces
the noise of the escaping air.
2. Slot vacuum chuck made of aluminum alloy: In this chuck,
vacuum generation is already integrated and ready for immediate
use. For work piece positioning there are exentric stops
located on two sides of the vacuum chuck. The rubber adapter
mat is perforated by user as required and enables clamping of
smaller components.
A vacuum stopper defines active vacuum area. The connection
is made via a pressure hose and a plug for standard pneumatic
connections.
The plates can be operated with the integrated venturi pump or
a vacuum pump.

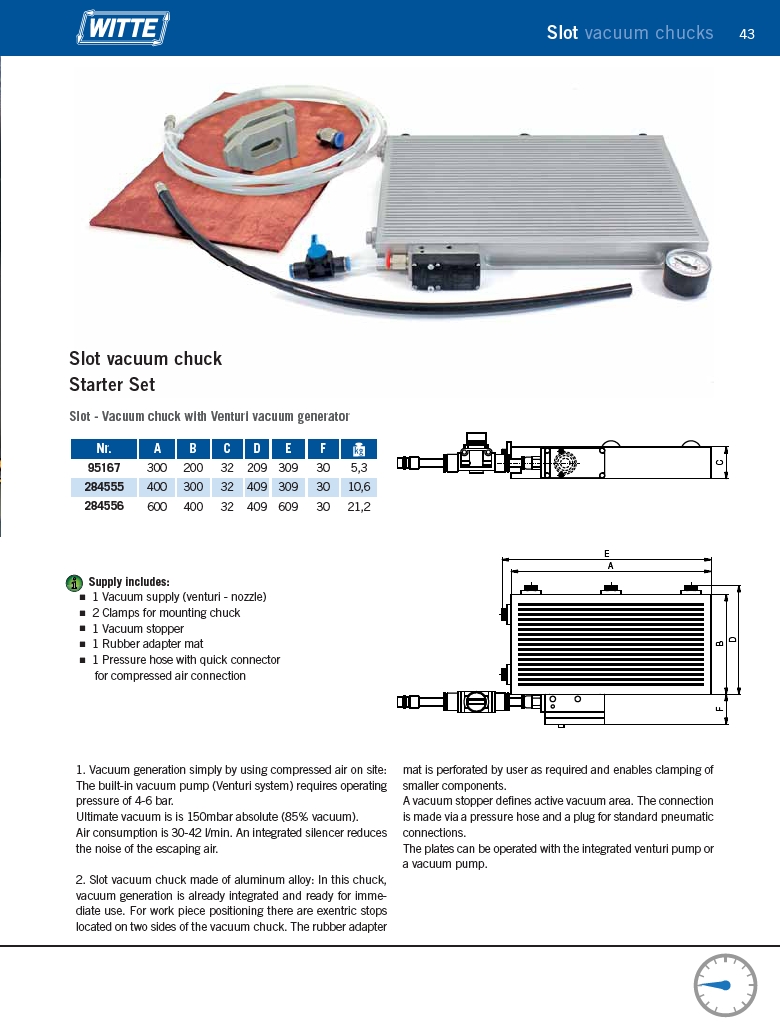

Slot vacuum chuck
Starter Set
Slot - Vacuum chuck with Venturi vacuum generator
Supply includes:
1 Vacuum supply (venturi - nozzle)
2 Clamps for mounting chuck
1 Vacuum stopper
1 Rubber adapter mat
1 Pressure hose with quick connector
for compressed air connection
