86 Metapor©

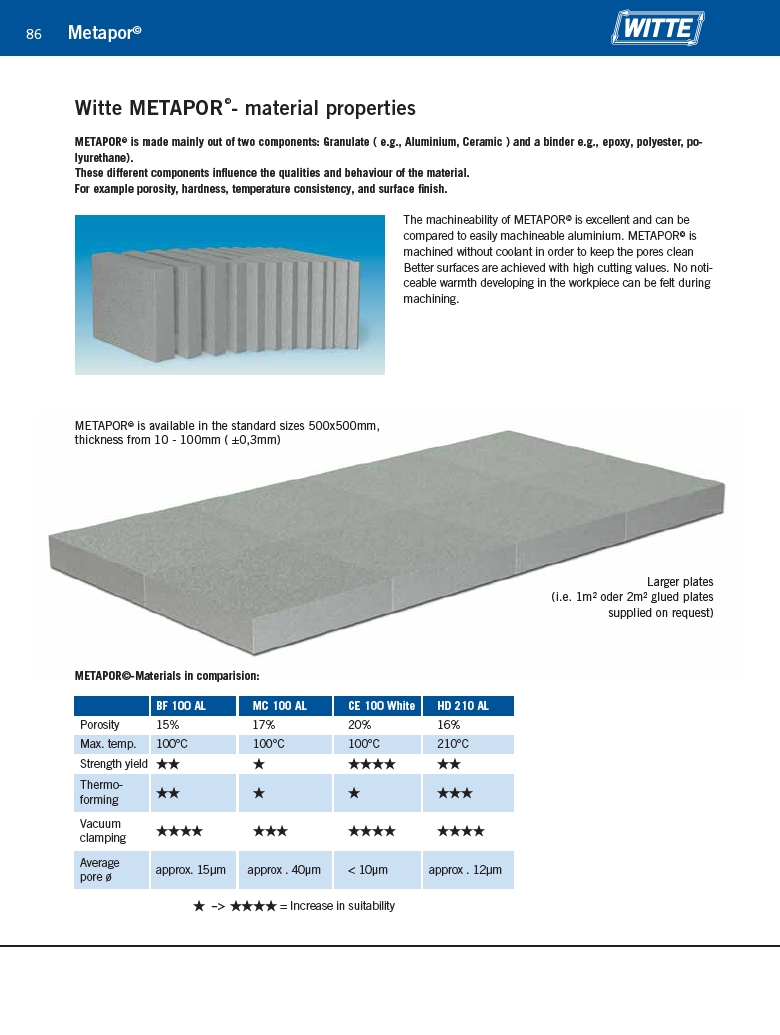

Witte METAPOR©- material properties
METAPOR© is made mainly out of two components: Granulate ( e.g., Aluminium, Ceramic ) and a binder e.g., epoxy, polyester, polyurethane).
METAPOR© is available in the standard sizes 500x500mm,
thickness from 10 - 100mm ( ±0,3mm)
METAPOR©-Materials in comparision:
The machineability of METAPOR© is excellent and can be
compared to easily machineable aluminium. METAPOR© is
machined without coolant in order to keep the pores clean
Better surfaces are achieved with high cutting values. No noticeable
warmth developing in the workpiece can be felt during
BF 100 AL MC 100 AL CE 100 White HD 210 AL
Porosity 15% 17% 20% 16%
Max. temp. 100°C 100°C 100°C 210°C
Strength yield
Thermoforming
Vacuum
clamping
Average
pore ø
approx. 15μm approx . 40μm < 10μm approx . 12μm
-> = Increase in suitability
Larger plates
(i.e. 1m2 oder 2m2 glued plates
supplied on request)
machining.
These different components influence the qualities and behaviour of the material.
For example porosity, hardness, temperature consistency, and surface finish.
