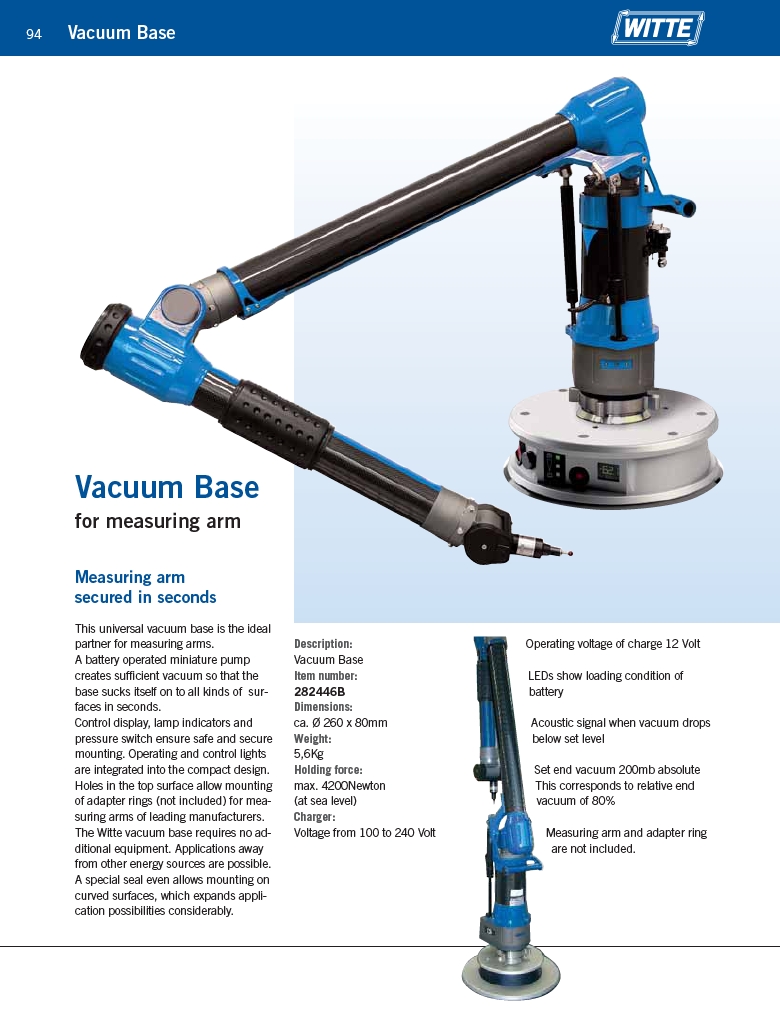

94 Vacuum Base
Vacuum Base
for measuring arm
This universal vacuum base is the ideal
partner for measuring arms.
A battery operated miniature pump
creates sufficient vacuum so that the
base sucks itself on to all kinds of surfaces
in seconds.
Control display, lamp indicators and
pressure switch ensure safe and secure
mounting. Operating and control lights
are integrated into the compact design.
Holes in the top surface allow mounting
of adapter rings (not included) for measuring
arms of leading manufacturers.
The Witte vacuum base requires no additional
equipment. Applications away
from other energy sources are possible.
A special seal even allows mounting on
curved surfaces, which expands application
possibilities considerably.
Description:
Vacuum Base
Item number:
282446B
Dimensions:
ca. Ø 260 x 80mm
Weight:
5,6Kg
Holding force:
max. 4200Newton
(at sea level)
Charger:
Voltage from 100 to 240 Volt
Operating voltage of charge 12 Volt
LEDs show loading condition of
battery
Acoustic signal when vacuum drops
below set level
Set end vacuum 200mb absolute
This corresponds to relative end
vacuum of 80%
Measuring arm and adapter ring
are not included.
Measuring arm
secured in seconds
