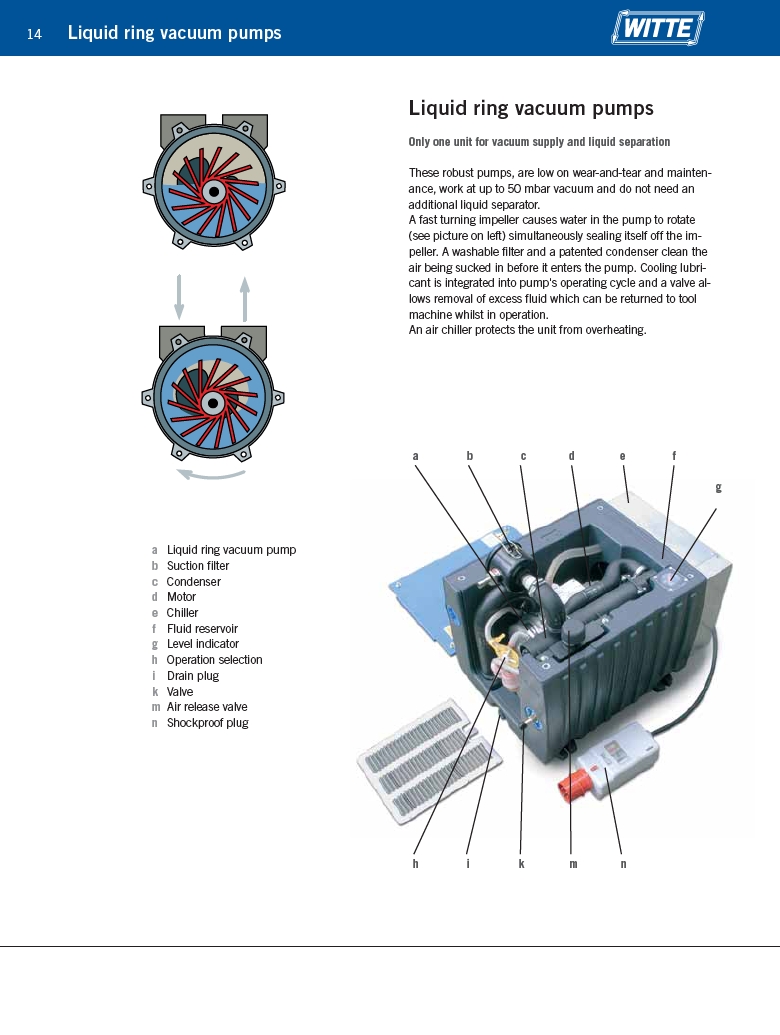

14
Only one unit for vacuum supply and liquid separation
a b c d e f
h i k m n
g
a Liquid ring vacuum pump
b Suction filter
c Condenser
d Motor
e Chiller
f Fluid reservoir
g Level indicator
h Operation selection
i Drain plug
k Valve
m Air release valve
n Shockproof plug
Liquid ring vacuum pumps
These robust pumps, are low on wear-and-tear and maintenance,
work at up to 50 mbar vacuum and do not need an
additional liquid separator.
A fast turning impeller causes water in the pump to rotate
(see picture on left) simultaneously sealing itself off the impeller.
A washable filter and a patented condenser clean the
air being sucked in before it enters the pump. Cooling lubricant
is integrated into pump's operating cycle and a valve allows
removal of excess fluid which can be returned to tool
machine whilst in operation.
An air chiller protects the unit from overheating.
Liquid ring vacuum pumps
