Retract function of upper section
Nr. A B C D E F G H
82137 88,9 74 28,6 47,8 12,7 76,3 15 25,5 476

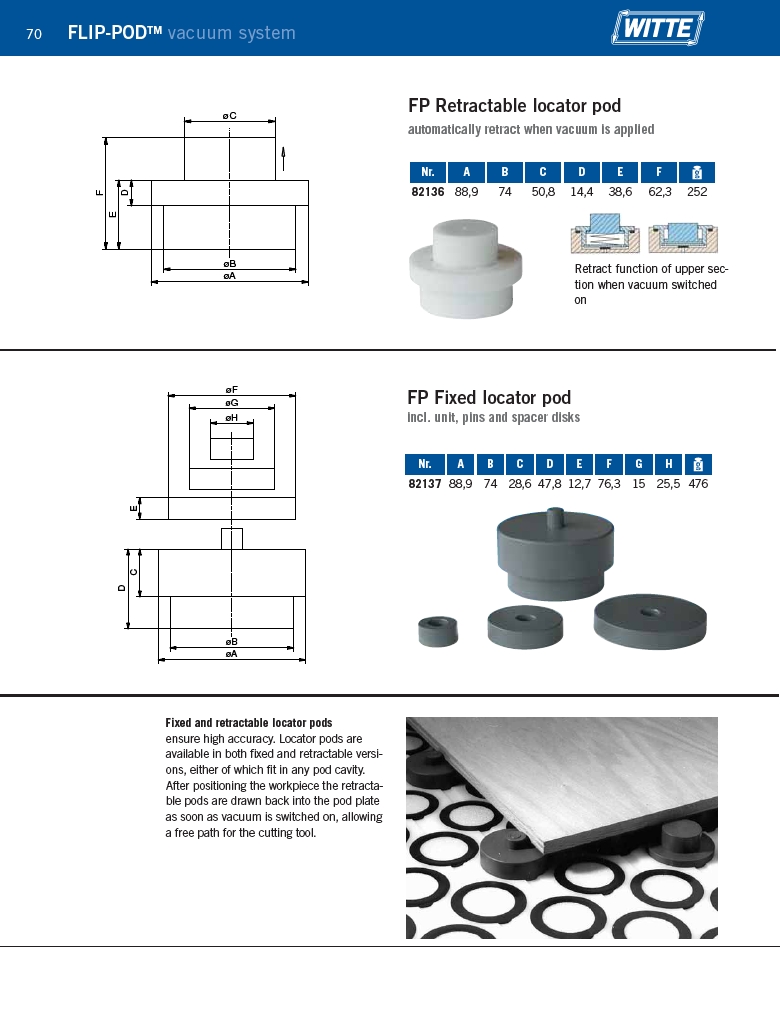

FLIP-PODTM vacuum system
FP Retractable locator pod
automatically retract when vacuum is applied
FP Fixed locator pod
incl. unit, pins and spacer disks
when vacuum switched
on
Fixed and retractable locator pods
ensure high accuracy. Locator pods are
available in both fixed and retractable versions,
either of which fit in any pod cavity.
After positioning the workpiece the retractable
pods are drawn back into the pod plate
as soon as vacuum is switched on, allowing
a free path for the cutting tool.
