75
C
D
Maßstab 1 :2
A
B B
Nr. A B C D
94045 250 43 2xLW12 1xLW18 1,5
92419 250 43 3xLW12 1xLW18 2
84389 300 43 4xLW12 1xLW18 1,7
85680 250 43 3xLW18 1xLW25 2
84390 480 84 6xLW12 1xLW25 5,6
85197 294 53 4xLW12 1xLW32 3
84391 480 84 6xLW12 1xLW32 5,9
84591 510 84 4xLW18 1xLW32 6,5
84392 765 84 6xLW18 1xLW32 6,9
89052 510 84 2xLW25 1xLW32 6,5
90134 690 84 6xLW12 1xLW50 6,9
90177 440 84 3xLW18 1xLW50 5,5
84393 510 84 4xLW25 1xLW50 6,0
90562 650 84 5xLW25 1xLW50 6,5
90527 130 84 2xLW32 1xLW50 4,6
84394 510 84 4xLW32 1xLW50 6

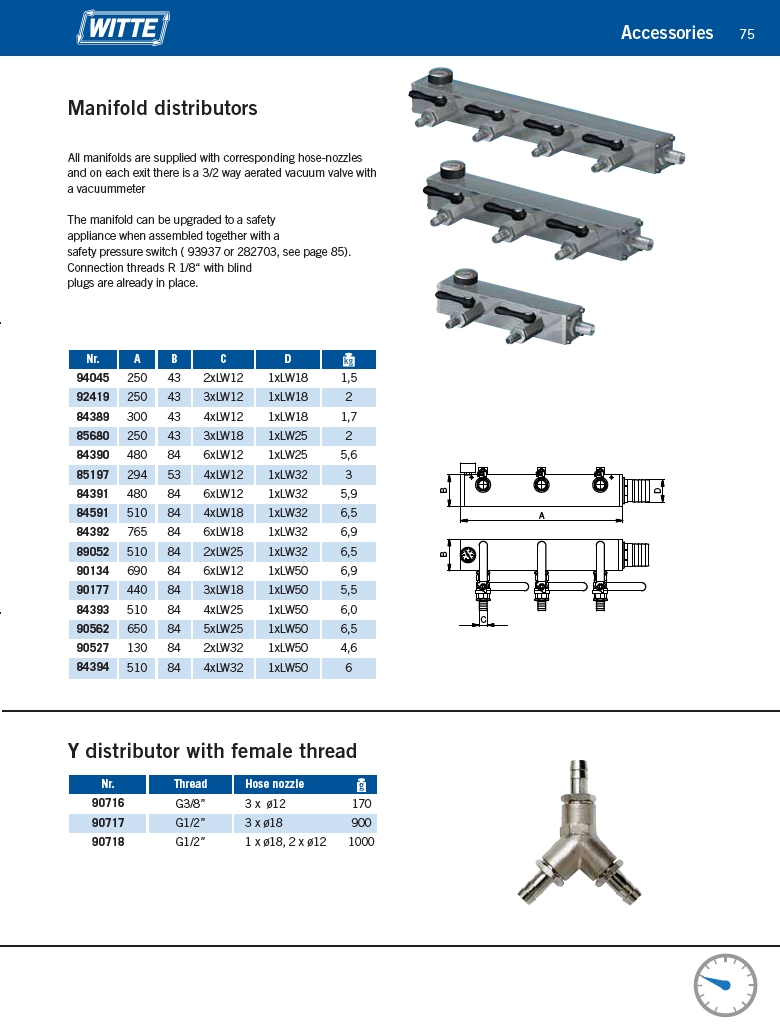

Accessories
Manifold distributors
All manifolds are supplied with corresponding hose-nozzles
and on each exit there is a 3/2 way aerated vacuum valve with
a vacuummeter
The manifold can be upgraded to a safety
appliance when assembled together with a
safety pressure switch ( 93937 or 282703, see page 85).
Connection threads R 1/8“ with blind
plugs are already in place.
Y distributor with female thread
Nr. Thread Hose nozzle
90716 G3/8” 3 x ø12 170
90717 G1/2” 3 x ø18 900
90718 G1/2” 1 x ø18, 2 x ø12 1000
