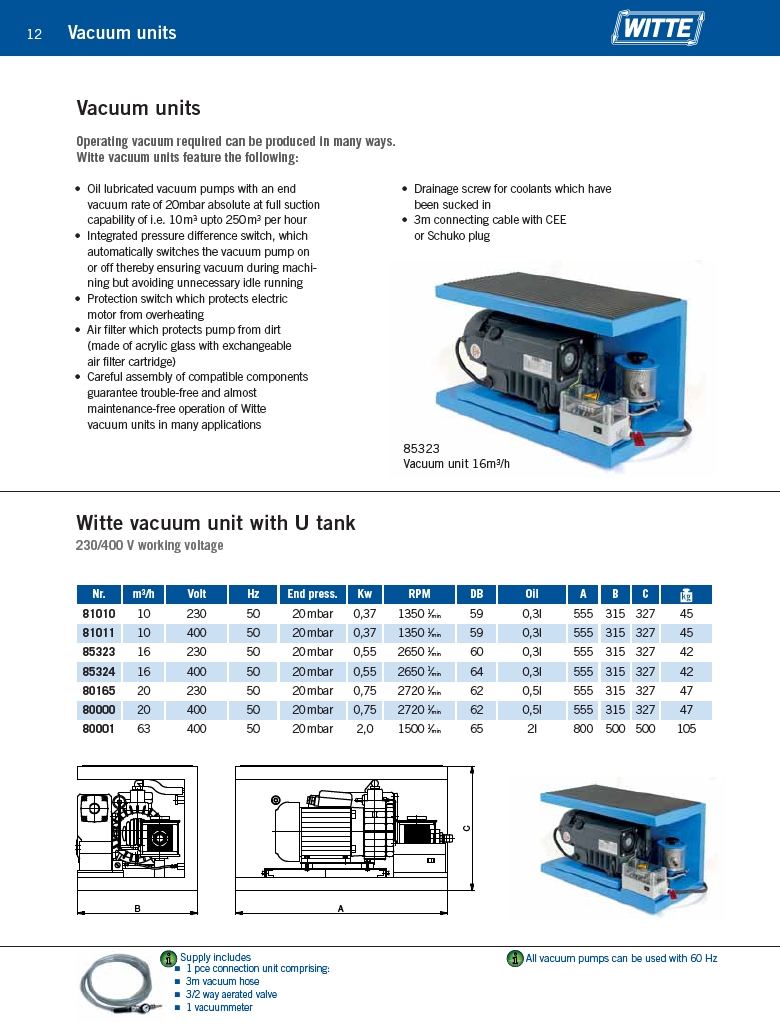

12
Vacuum units
Vacuum units
Operating vacuum required can be produced in many ways.
Witte vacuum units feature the following:
• Oil lubricated vacuum pumps with an end
vacuum rate of 20mbar absolute at full suction
capability of i.e. 10m3 upto 250m3 per hour
• Integrated pressure difference switch, which
automatically switches the vacuum pump on
or off thereby ensuring vacuum during machi-
ning but avoiding unnecessary idle running
• Protection switch which protects electric
motor from overheating
• Air filter which protects pump from dirt
(made of acrylic glass with exchangeable
air filter cartridge)
• Careful assembly of compatible components
guarantee trouble-free and almost
maintenance-free operation of Witte
vacuum units in many applications
Witte vacuum unit with U tank
230/400 V working voltage
Nr. m3/h Volt Hz End press. Kw RPM DB Oil A B C
81010 10 230 50 20 mbar 0,37 1350 1⁄min 59 0,3l 555 315 327 45
81011 10 400 50 20 mbar 0,37 1350 1⁄min 59 0,3l 555 315 327 45
85323 16 230 50 20 mbar 0,55 2650 1⁄min 60 0,3l 555 315 327 42
85324 16 400 50 20 mbar 0,55 2650 1⁄min 64 0,3l 555 315 327 42
80165 20 230 50 20 mbar 0,75 2720 1⁄min 62 0,5l 555 315 327 47
80000 20 400 50 20 mbar 0,75 2720 1⁄min 62 0,5l 555 315 327 47
80001 63 400 50 20 mbar 2,0 1500 1⁄min 65 2l 800 500 500 105
A
• Drainage screw for coolants which have
been sucked in
• 3m connecting cable with CEE
or Schuko plug
85323
Vacuum unit 16m3/h
C
B
i i
Supply includes
1 pce connection unit comprising:
3m vacuum hose
3/2 way aerated valve
1 vacuummeter
All vacuum pumps can be used with 60 Hz
