53
C
A
B
i
Nr. A B C
84686 300 200 38 7,1
84687 400 300 38 14,2
84688 600 400 38 28,4
Nr. A B C Stck
00839 300 200 <1 50 1,8
00840 400 300 <1 25 1,8
00841 600 400 <1 25 3,6

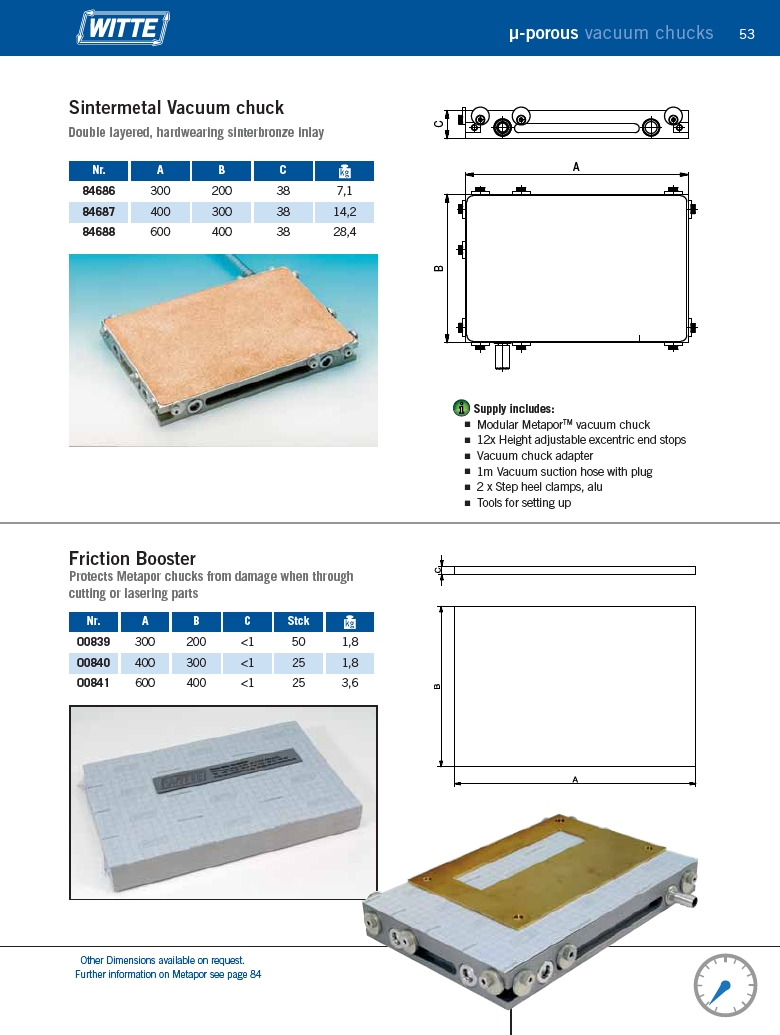

μ-porous vacuum chucks
Sintermetal Vacuum chuck
Double layered, hardwearing sinterbronze inlay
Friction Booster
Protects Metapor chucks from damage when through
cutting or lasering parts
Supply includes:
Modular MetaporTM vacuum chuck
12x Height adjustable excentric end stops
Vacuum chuck adapter
1m Vacuum suction hose with plug
2 x Step heel clamps, alu
Tools for setting up
Other Dimensions available on request.
Further information on Metapor see page 84
