68
C
øA
øB

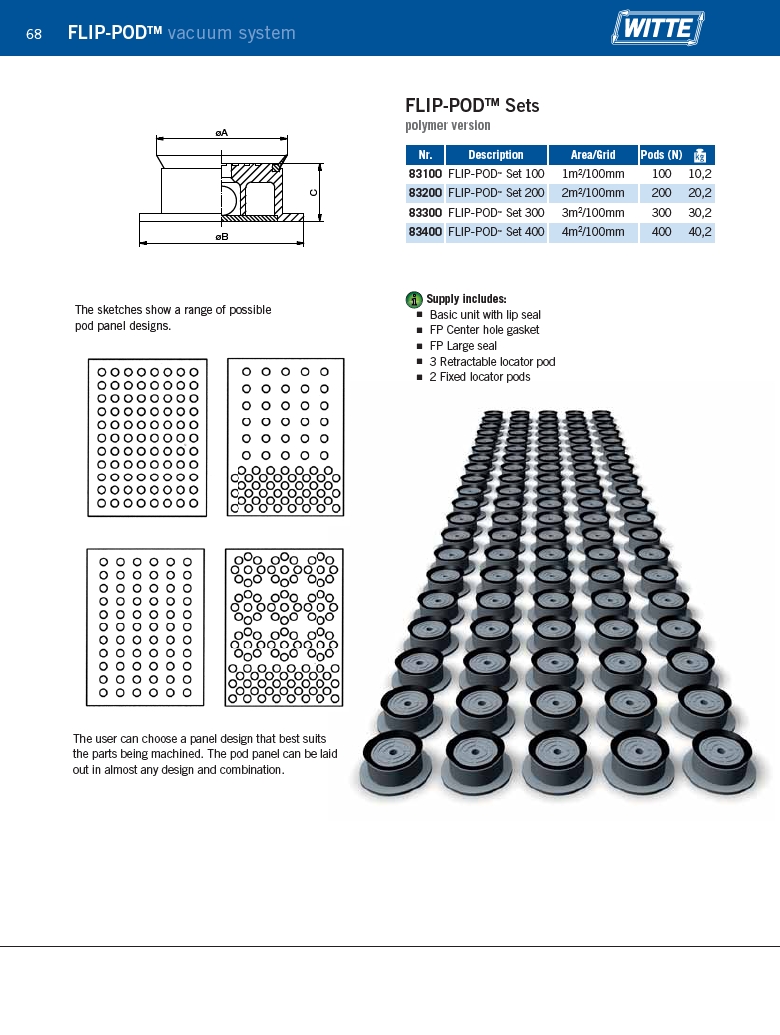

FLIP-PODTM Sets
polymer version
i
FLIP-PODTM vacuum system
Nr. Description Area/Grid Pods (N)
83100 FLIP-PODTM Set 100 1m2/100mm 100 10,2
83200 FLIP-PODTM Set 200 2m2/100mm 200 20,2
83300 FLIP-PODTM Set 300 3m2/100mm 300 30,2
83400 FLIP-PODTM Set 400 4m2/100mm 400 40,2
The sketches show a range of possible
pod panel designs.
The user can choose a panel design that best suits
the parts being machined. The pod panel can be laid
out in almost any design and combination.
Supply includes:
Basic unit with lip seal
FP Center hole gasket
FP Large seal
3 Retractable locator pod
2 Fixed locator pods
