41
i
L
B C
����������
������������������������
����������
������
������
��
��������������������
��
�������� ��
��
Nr. B L C
287960 200 300 48 7,7
289470 300 400 48 15,3
289471 400 600 48 31,1
i
i
Nr. B L C
286641 200 300 38 5,5
286642 300 400 38 11,2
286643 400 600 38 23
i
i
Prepared for Zero Clamp system
(Not for No. 287960)

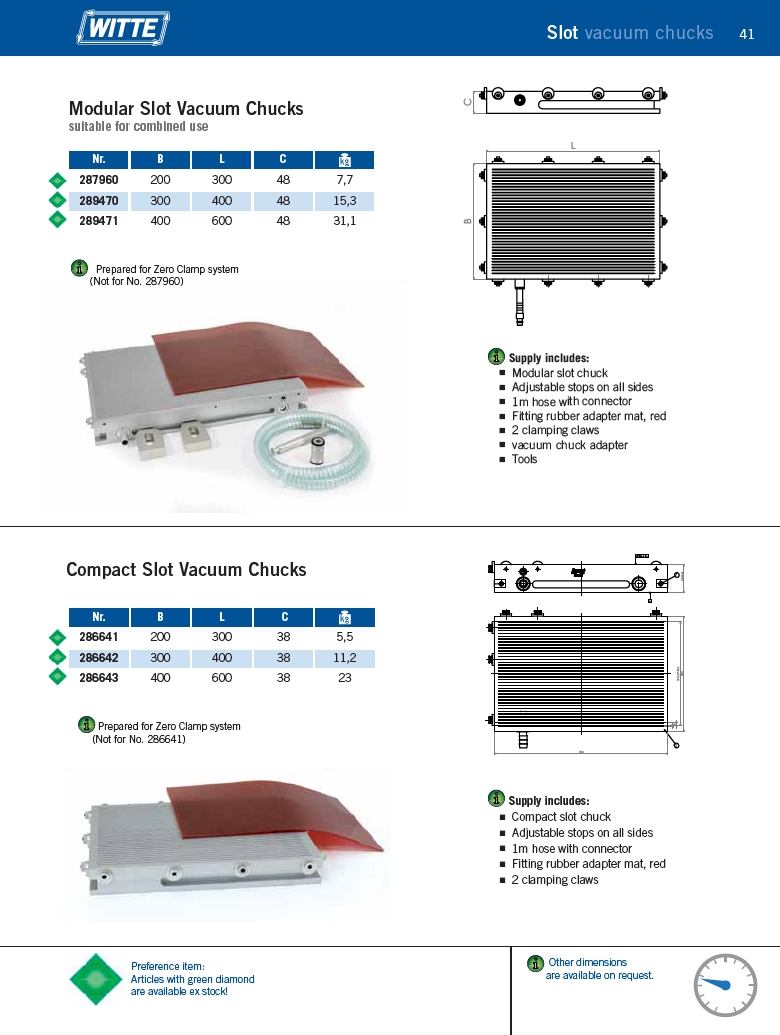

Slot vacuum chucks
Other dimensions
are available on request.
Modular Slot Vacuum Chucks
suitable for combined use
Compact Slot Vacuum Chucks
Supply includes:
Modular slot chuck
Adjustable stops on all sides
1m hose with connector
Fitting rubber adapter mat, red
2 clamping claws
vacuum chuck adapter
Tools
Supply includes:
Compact slot chuck
Adjustable stops on all sides
1m hose with connector
Fitting rubber adapter mat, red
2 clamping claws
Prepared for Zero Clamp system
(Not for No. 286641)
Preference item:
Articles with green diamond
are available ex stock!
