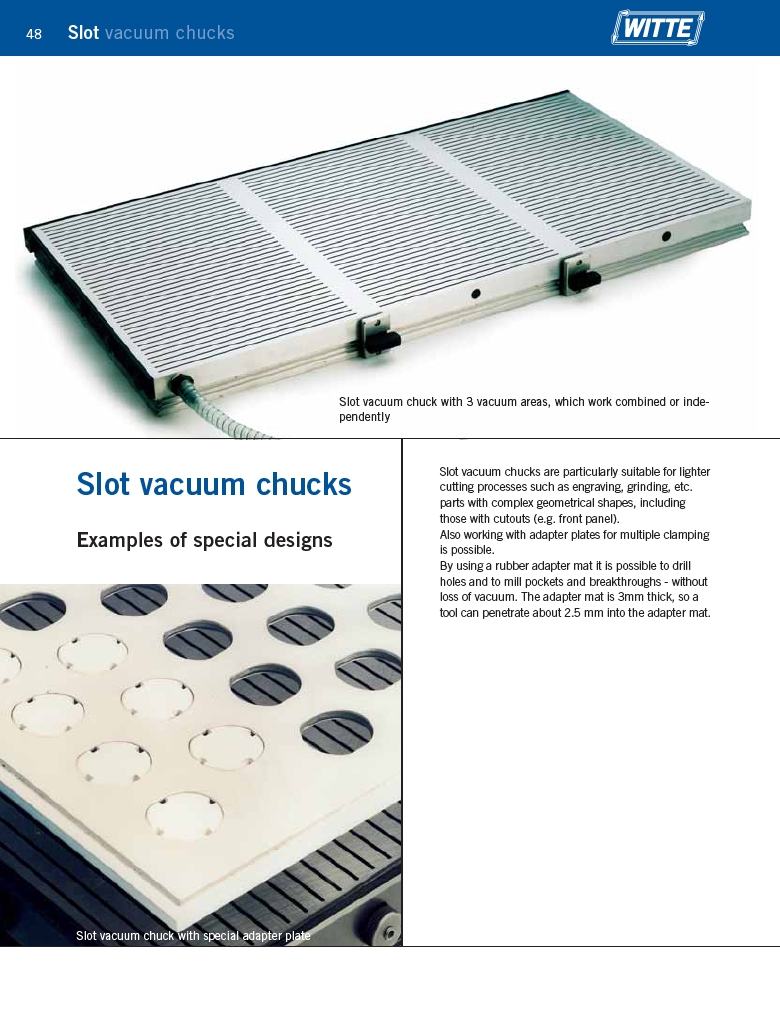

Slot vacuum chucks
Slot vacuum chuck with 3 vacuum areas, which work combined or independently
Slot vacuum chucks
Examples of special designs
Slot vacuum chucks are particularly suitable for lighter
cutting processes such as engraving, grinding, etc.
parts with complex geometrical shapes, including
those with cutouts (e.g. front panel).
Also working with adapter plates for multiple clamping
is possible.
By using a rubber adapter mat it is possible to drill
holes and to mill pockets and breakthroughs - without
loss of vacuum. The adapter mat is 3mm thick, so a
tool can penetrate about 2.5 mm into the adapter mat.
Slot vacuum chuck with special adapter plate
