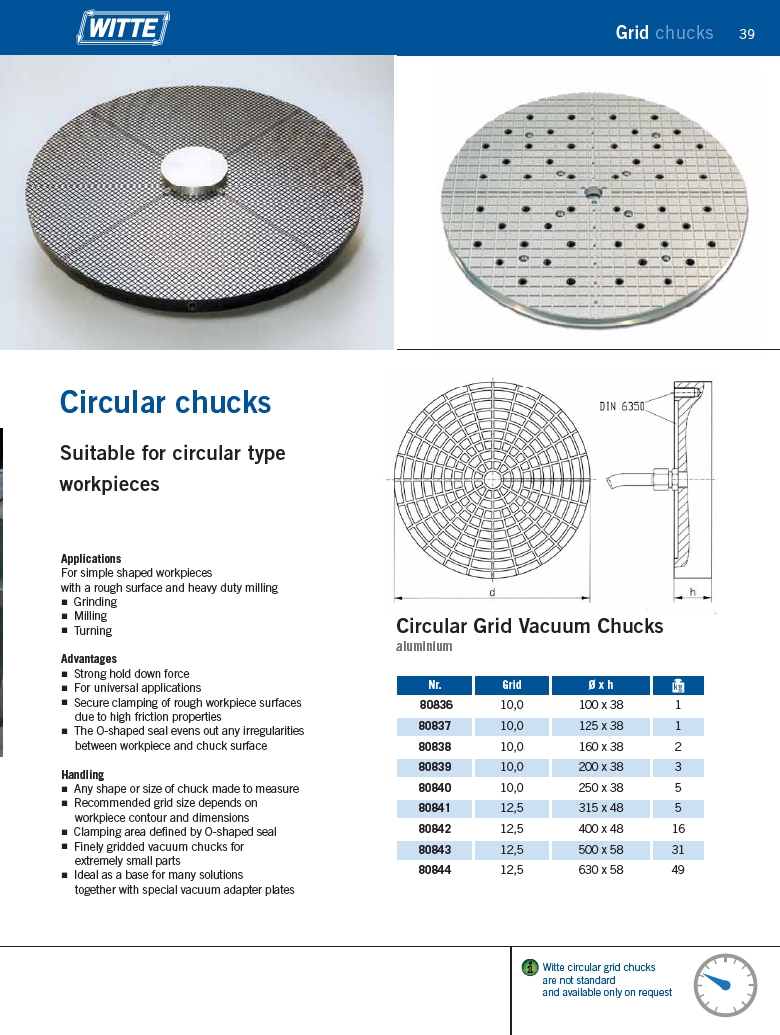

Circular Grid Vacuum Chucks
aluminium
Nr. Grid Ø x h
80836 10,0 100 x 38 1
80837 10,0 125 x 38 1
80838 10,0 160 x 38 2
80839 10,0 200 x 38 3
80840 10,0 250 x 38 5
80841 12,5 315 x 48 5
80842 12,5 400 x 48 16
80843 12,5 500 x 58 31
80844 12,5 630 x 58 49
i
Grid chucks
Circular chucks
Suitable for circular type
workpieces
Applications
For simple shaped workpieces
with a rough surface and heavy duty milling
Grinding
Milling
Turning
Advantages
Strong hold down force
For universal applications
Secure clamping of rough workpiece surfaces
due to high friction properties
The O-shaped seal evens out any irregularities
between workpiece and chuck surface
Handling
Any shape or size of chuck made to measure
Recommended grid size depends on
workpiece contour and dimensions
Clamping area defined by O-shaped seal
Finely gridded vacuum chucks for
extremely small parts
Ideal as a base for many solutions
together with special vacuum adapter plates
Witte circular grid chucks
are not standard
and available only on request
