92
Witte Weiguss LM70
i
Nr.
94161 Weiguss- Pack to 1kg 1
Mould clamping

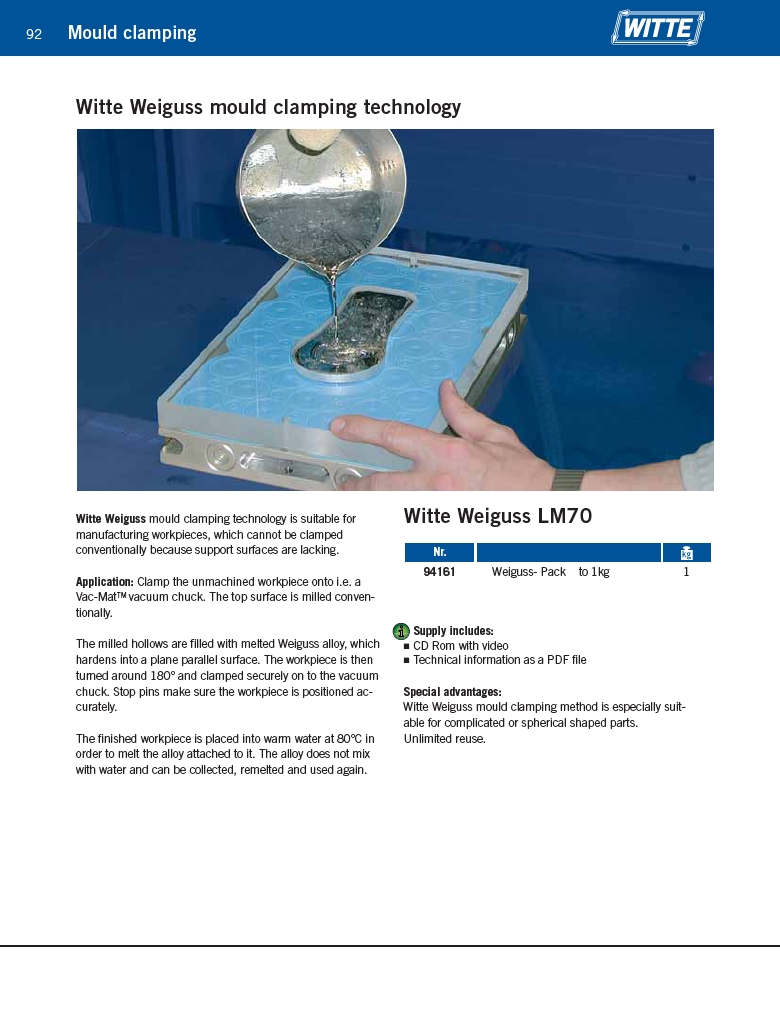

Witte Weiguss mould clamping technology
Witte Weiguss mould clamping technology is suitable for
manufacturing workpieces, which cannot be clamped
conventionally because support surfaces are lacking.
Application: Clamp the unmachined workpiece onto i.e. a
Vac-MatTM vacuum chuck. The top surface is milled conventionally.
The milled hollows are filled with melted Weiguss alloy, which
hardens into a plane parallel surface. The workpiece is then
turned around 180° and clamped securely on to the vacuum
chuck. Stop pins make sure the workpiece is positioned accurately.
The finished workpiece is placed into warm water at 80°C in
order to melt the alloy attached to it. The alloy does not mix
with water and can be collected, remelted and used again.
Supply includes:
CD Rom with video
Technical information as a PDF file
Special advantages:
Witte Weiguss mould clamping method is especially suitable
for complicated or spherical shaped parts.
Unlimited reuse.
