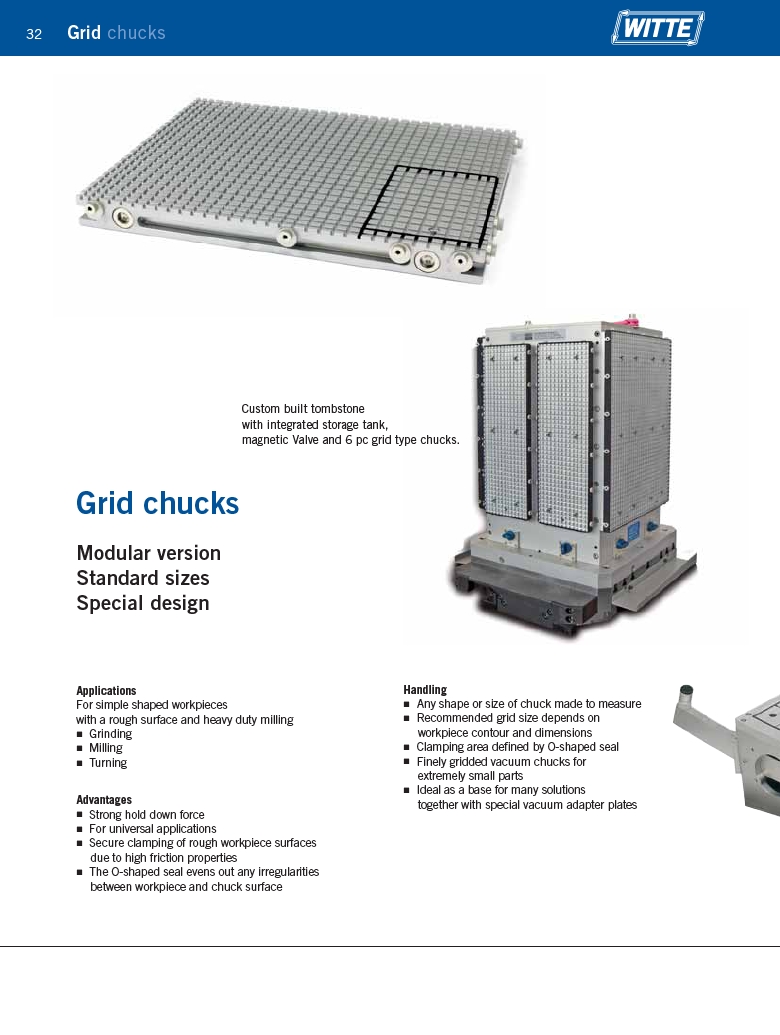

32 Grid chucks
Custom built tombstone
with integrated storage tank,
magnetic Valve and 6 pc grid type chucks.
Grid chucks
Modular version
Standard sizes
Special design
Applications
For simple shaped workpieces
with a rough surface and heavy duty milling
Grinding
Milling
Turning
Advantages
Strong hold down force
For universal applications
Secure clamping of rough workpiece surfaces
due to high friction properties
The O-shaped seal evens out any irregularities
between workpiece and chuck surface
Handling
Any shape or size of chuck made to measure
Recommended grid size depends on
workpiece contour and dimensions
Clamping area defined by O-shaped seal
Finely gridded vacuum chucks for
extremely small parts
Ideal as a base for many solutions
together with special vacuum adapter plates
