51
C
A
C B
A
B
i
i
i
i
i

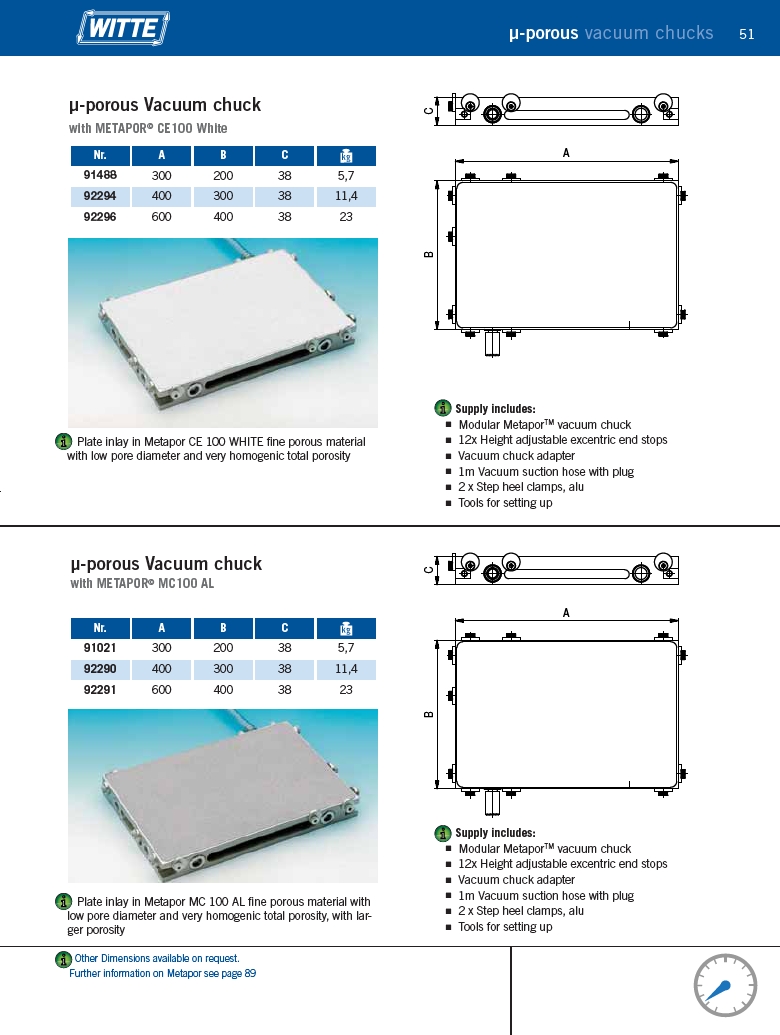

μ-porous Vacuum chuck
with METAPOR© CE100 White
Nr. A B C
91488 300 200 38 5,7
92294 400 300 38 11,4
92296 600 400 38 23
Plate inlay in Metapor CE 100 WHITE fine porous material
with low pore diameter and very homogenic total porosity
Nr. A B C
91021 300 200 38 5,7
92290 400 300 38 11,4
92291 600 400 38 23
μ-porous vacuum chucks
μ-porous Vacuum chuck
with METAPOR© MC100 AL
Plate inlay in Metapor MC 100 AL fine porous material with
low pore diameter and very homogenic total porosity, with larger
porosity
Supply includes:
Modular MetaporTM vacuum chuck
12x Height adjustable excentric end stops
Vacuum chuck adapter
1m Vacuum suction hose with plug
2 x Step heel clamps, alu
Tools for setting up
Supply includes:
Modular MetaporTM vacuum chuck
12x Height adjustable excentric end stops
Vacuum chuck adapter
1m Vacuum suction hose with plug
2 x Step heel clamps, alu
Tools for setting up
Other Dimensions available on request.
Further information on Metapor see page 89
