77

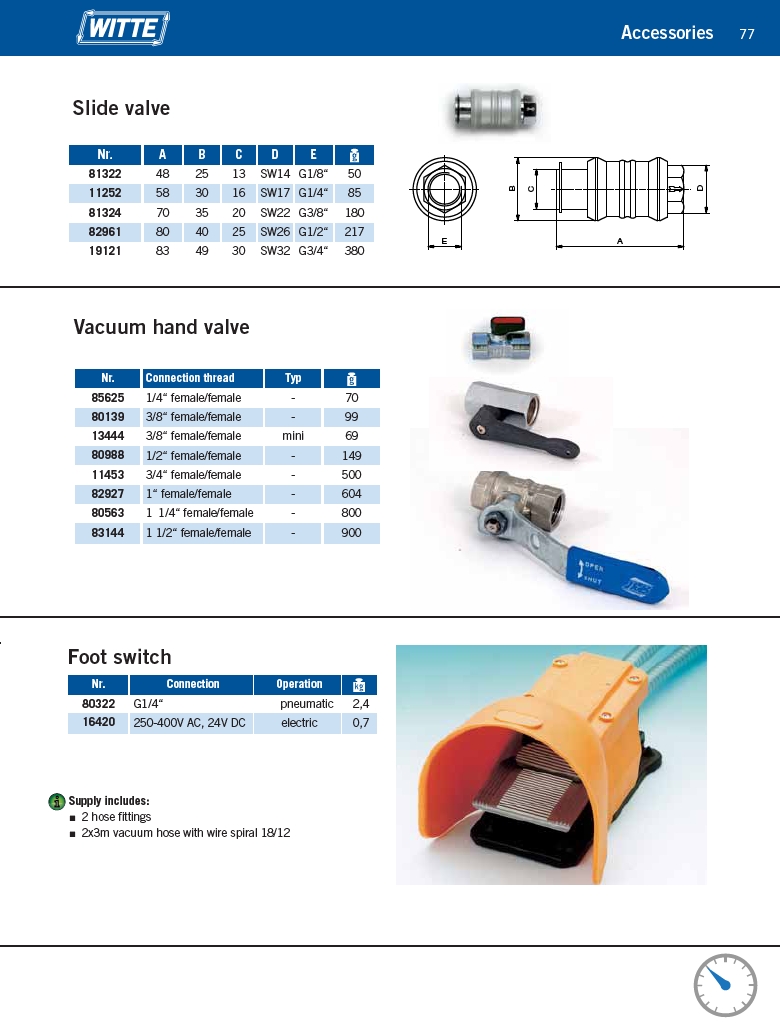

Slide valve
Nr. A B C D E
81322 48 25 13 SW14 G1/8“ 50
11252 58 30 16 SW17 G1/4“ 85
81324 70 35 20 SW22 G3/8“ 180
82961 80 40 25 SW26 G1/2“ 217
19121 83 49 30 SW32 G3/4“ 380
D
A
C
B
E
i
Vacuum hand valve
Nr. Connection thread Typ
85625 1/4“ female/female - 70
80139 3/8“ female/female - 99
13444 3/8“ female/female mini 69
80988 1/2“ female/female - 149
11453 3/4“ female/female - 500
82927 1“ female/female - 604
80563 1 1/4“ female/female - 800
83144 1 1/2“ female/female - 900
Foot switch
Nr. Connection Operation
80322 G1/4“ pn pneumatic 2,4
16420 250-400V AC, 24V DC electric 0,7
Accessories
Supply includes:
2 hose fittings
2x3m vacuum hose with wire spiral 18/12
