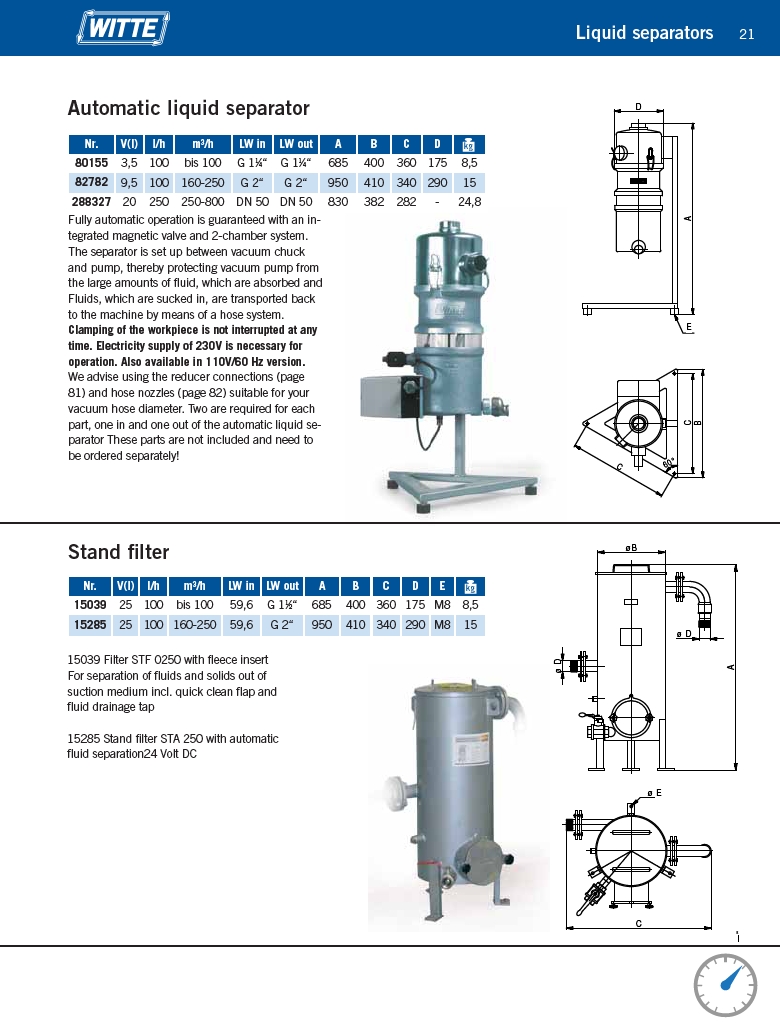

Automatic liquid separator
Nr. V(l) l/h m3/h LW in LW out A B C D
80155 3,5 100 bis 100 G 11⁄4“ G 11⁄4“ 685 400 360 175 8,5
82782 9,5 100 160-250 G 2“ G 2“ 950 410 340 290 15
288327 20 250 250-800 DN 50 DN 50 830 382 282 - 24,8
Fully automatic operation is guaranteed with an integrated
magnetic valve and 2-chamber system.
The separator is set up between vacuum chuck
and pump, thereby protecting vacuum pump from
the large amounts of fluid, which are absorbed and
Fluids, which are sucked in, are transported back
to the machine by means of a hose system.
Clamping of the workpiece is not interrupted at any
time. Electricity supply of 230V is necessary for
operation. Also available in 110V/60 Hz version.
We advise using the reducer connections (page
81) and hose nozzles (page 82) suitable for your
vacuum hose diameter. Two are required for each
part, one in and one out of the automatic liquid separator
These parts are not included and need to
be ordered separately!
Stand filter
Nr. V(l) l/h m3/h LW in LW out A B C D E
15039 25 100 bis 100 59,6 G 11⁄2“ 685 400 360 175 M8 8,5
15285 25 100 160-250 59,6 G 2“ 950 410 340 290 M8 15
Liquid separators
15039 Filter STF 0250 with fleece insert
For separation of fluids and solids out of
suction medium incl. quick clean flap and
fluid drainage tap
15285 Stand filter STA 250 with automatic
fluid separation24 Volt DC
