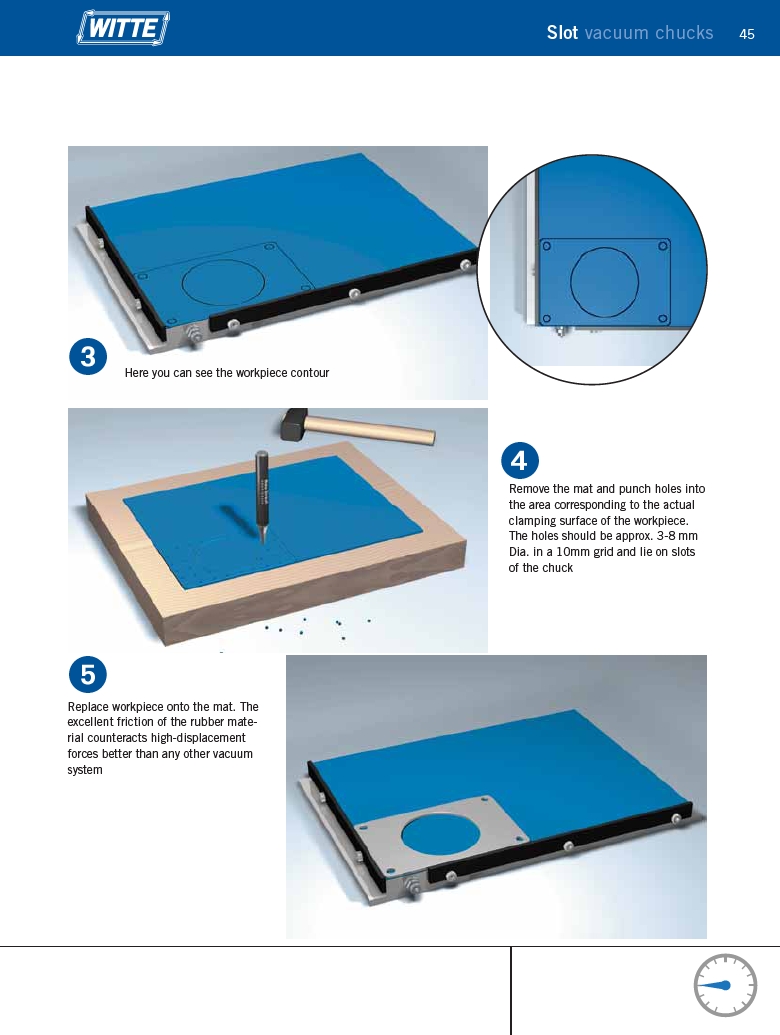

Here you can see the workpiece contour
Remove the mat and punch holes into
the area correspond ing to the actual
clamping surface of the work piece.
The holes should be approx. 3-8 mm
Dia. in a 10mm grid and lie on slots
of the chuck
Replace workpiece onto the mat. The
excellent friction of the rubber material
counteracts high-displacement
forces better than any other vacuum
system
Slot vacuum chucks
