36
��
��
��
i
i
Nr. A B C
282126 300 200 32,5 5,3
282127 400 300 32,5 10,6
282128 600 400 32,5 21,2

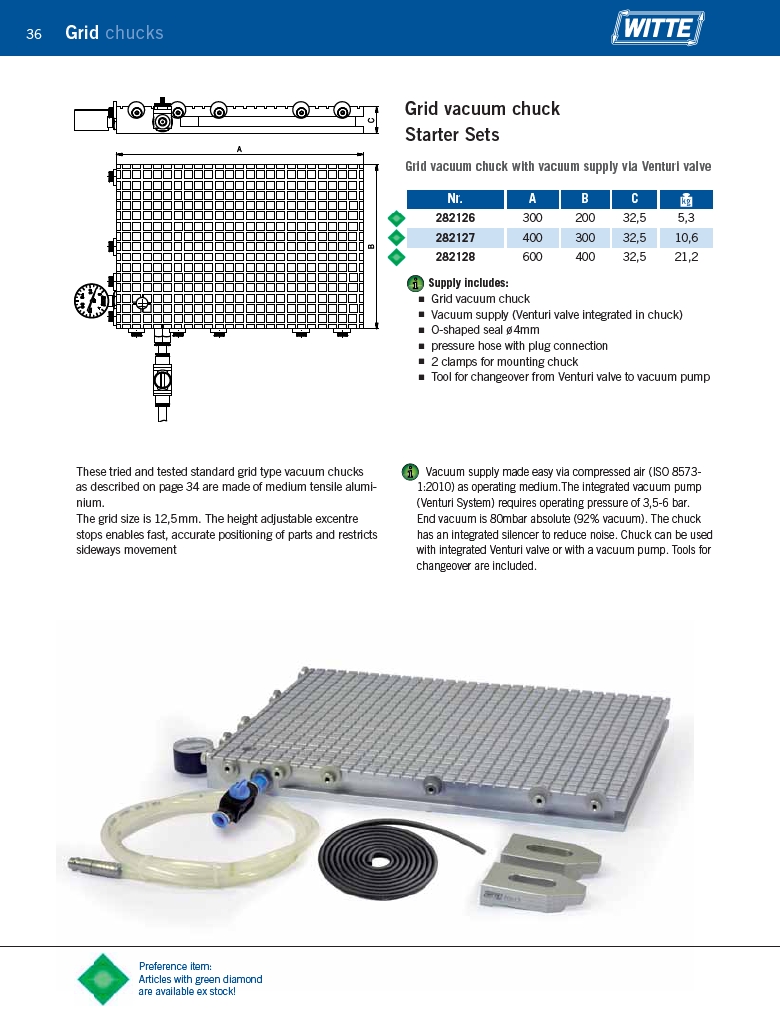

Grid chucks
These tried and tested standard grid type vacuum chucks
as described on page 34 are made of medium tensile aluminium.
The grid size is 12,5 mm. The height adjustable excentre
stops enables fast, accurate positioning of parts and restricts
sideways movement
Grid vacuum chuck
Starter Sets
Grid vacuum chuck with vacuum supply via Venturi valve
Supply includes:
Grid vacuum chuck
Vacuum supply (Venturi valve integrated in chuck)
O-shaped seal ø 4mm
pressure hose with plug connection
2 clamps for mounting chuck
Tool for changeover from Venturi valve to vacuum pump
Vacuum supply made easy via compressed air (ISO 8573-
1:2010) as operating medium.The integrated vacuum pump
(Venturi System) requires operating pressure of 3,5-6 bar.
End vacuum is 80mbar absolute (92% vacuum). The chuck
has an integrated silencer to reduce noise. Chuck can be used
with integrated Venturi valve or with a vacuum pump. Tools for
changeover are included.
Preference item:
Articles with green diamond
are available ex stock!
